The Subaru Online ECU reprogramming function has been added to LAUNCH X431 PAD V, take a look at how to do it.
2010-2019 model Programming functions have been added for some Subaru models / control units.
Software version 24.61.
If you select "ECU reprogramming", ...
There are three ways. Select "Manual selection by vehicle".
It seems to be compatible with these car models.
XV
WRX
Tribeca
Outback
Levorg
Legacy
Impreza
Forester
BRZ
If you select "Select by ECU part number", it seems that it will search for software that can be reprogrammed by entering the part number of the currently installed ECU.
Launch X431 PAD Vpowerful diagnostic tool is also able to performOnline Coding Programming on BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti. Which covers more car models than Autel. This article is available with the procedure ofAudi A5 2014 Engine ECU LONG CODINGwith the X-431 PAD V. You will feel it is powerful and smart.
Here we go for details:
This is the Health Report of Audi V28.67 (newest version), you can see “P161200 Engine Control Module (ECM) -incorrect Coding. “.
Then “Read ECU Memory”, there is a Long Coding:
00000000000000000000.
Click on Audi V28.67 -> Menu, click on “Online Function”.
Click on “Online Coding”.
It will pop up “This program is about to download a file.”.
Downloading, please wait…
Loading file…
Single System Mode.
Loading file, please wait.
Choose “01 Engine Control Module 1”.
It will ask ” Do you want to Modify the Code: …> …?”, click on “Yes”.
Processing, please wait.
The coding has been successfully Carried out.
It will ask “Do you need to clear the Fault code and read the fault code again?”.
Click on “Yes”.
Communicating, please wait.
Fault codes cleared, read DTC? click on “Yes”.
Communicating, please wait…
Exit online programming.
Back to view “Health Report”, there is no Fault code any more.
When the process bar run to 100%, it will pop up “Clear Fault Memory Completed”.
Alright, Engine ECU Long Coding job is done. With Launch X431 PAD 5, the whole process is simple and pleasant.
Confirmed:Yanhua Mini ACDPaddModule 17for BMW E series (GS19D)6HP refresh is the global first device to clear the BMW E series 6HP EGS ISN on bench, andread BMW E series 6HP EGS ISN on bench or via OBD.And these BMW Car models will take this advantage:
Why ACDP BMW E series (GS19D) 6HP refresh is advantageous?
The adapter connection and the whole job is done on bench instead of using the whole set of CAS3 platform (CAS module, JBE module, instrument, working key and key coil).
2．No downgrade programming during clearing EGS ISN, it is rather simple, efficient and no risk.
Operation guide: clear BMW E series EGS 6H (GS19D) ISN using ACDP on bench
Please make sure the ACDP power supply is normal during the working process.
Step 2. Connect the interface board correctly to the gearbox interface as shown.

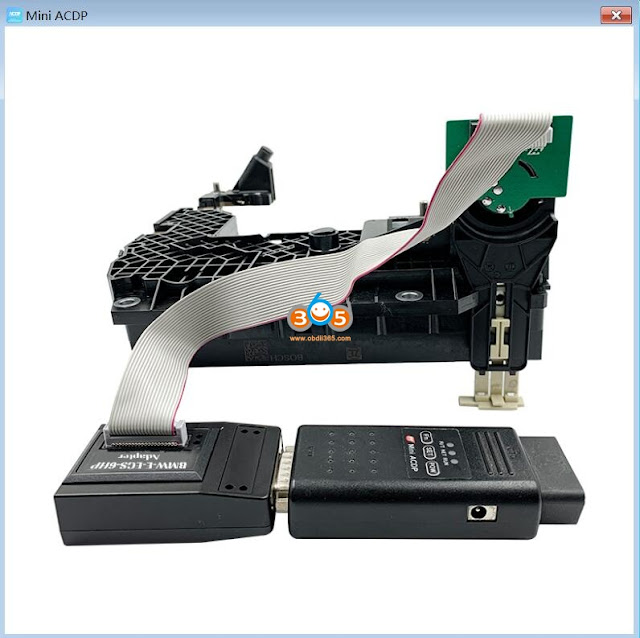

Step 3. Connect ACDP, EGS adapter, interface board and gearbox.
Back to ACDP software on one computer / phone, click on “BMW” ->EGS refresh->6H (GS19D) ISN Clear (Supports E Chassis)->Bench Mode / OBDII mode
Here we go to “Bench Mode”, there are options:
Identify EGS info, clear EGS ISN, Read EGS ISN, Modify EGS VIN, Reset EGS system etc.
Click on” Identify EGS info”.
Click “OK” to make sure the adapter is connected.
Initializing the adapter.
You will see ” Whether EGS ISN is existed: Yes”, click on “OK” and save file.
Detect system info finished: EGS is uncleared, tap “OK”.
Save file.
Back to click on “Clear EGS ISN”.
Click “OK” to make sure the adapter is connected.
Initializing the adapter.
Reading system information.
Click on “Continue”.
Save file.
Reading RAM data.
Please save the EGS RAM data.
Uploading the data.
Save the file.
Here are EGS system info (Please make sure a screenshot of this result).

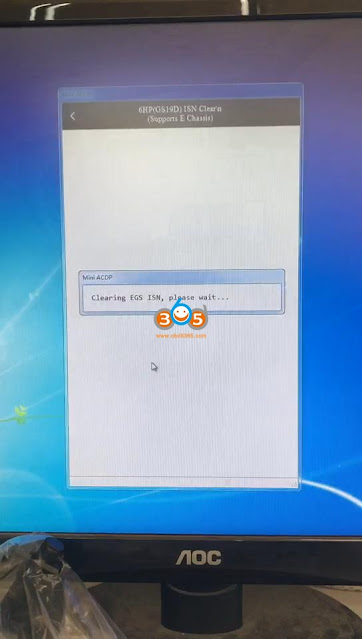

Clearing EGS ISN, please wait…
Clear EGS ISN finished.
Uploading the data.
Save the file.
Back to click on “Identify EGS info”.
You will see “Whether EGS ISN is exited: NO”, click on”OK”.
The job is done perfectly!
For the OBDII Mode, simply connect Yanhua ACDP unit to the OBD2 port of the car.
And after entering “OBDII mode”, there are options: Identify EGS info, Read EGS ISN, Reset EGS adaptation, Modify EGS VIN, Reset CAS system, Reset EGS system etc.
Enjoy!
Video reference:
ACDP Mini now supports E series 6HP 8HP and F series 6HP 8HP EGS ISN reset
2M2 Magic Tank key cutting machine new app released new function- customize key data. This function allows users to customize new key blank and a new key data by measuring original key size.
We obdii365.com takes an example of Kia laser key inner 2 grooves.
Select Customize Key Data function->Laser key inner 2 grooves
Choose groove type: Groove in the middle and select if it has bevel or not
Measure the distance from tip to the first cut and enter the digit
Measure the distance from tip to the last cut and enter the digit
Measure the length of groove in the middle and enter the digit
Measure the edge of the key to the groove and enter the digit
Measure the width if the groove in the middle and quantity of cuts (both sides) and enter digits
Place original key into key clamp for calibration
Save new key data, key blank name and key type
Press Save to create key blank
Prepare super key blank
Press Cutter is changed

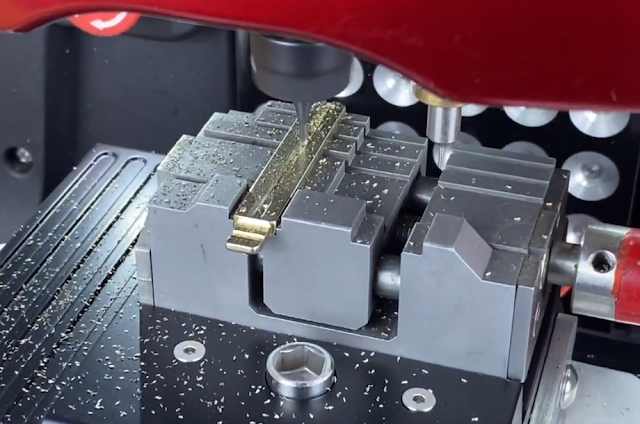

Fix universal key blank on the left. The key must be flat between the groove.
