2018/06/28

AK500 Key Programmer Review: NEC keys, Install, Database

I searched a lot on the web for MB key Programming and find that AK500 or Ak500+ key programmerreviews are there best for a beginner or anyone who looking for a decent MB key tool.

Part 1: AK500 (AK500+) and NEC keys
Part 2: AK500 (AK500+) Windows 7 install
Part 3: AK500 (AK500+) database how to use
Part 4: AK500 (AK500+) hardware how to use
Part 5: AK500 (AK500+) how to program new keys

In detail…

Part 1: NEC Keys: Confirmed to work with AK500 (AK500+)

Can renew NEC key
AK 500 good eeprom programmer. No write MB key. It can be renew NEC ic.
Necessary NEC programmer .AK500 unable original MB key.

Can support genuine NEC key
AK500+ work fine genuine key( renew nec chip), with chinesse key only record eeprom one time. On W203 (motorola ROM secure mask 1J35D) not work…

Can read 1j35d on w203 EIS
you can read 1j35d on w203 EIS !! I did it last week. It can renew NEC-keys, too. The big problem are the remote bytes from NEC keys while renewing. It kills the remote bytes and the remote door locks does not work anymore. Other problem is with 9s12/HC12 EIS, it kills the flash. You have to write a new flash to the EIS. These week, i sold another tool called “EIS repair tool” to a forum member. This tool can make the same EIS like AK500. But this tool can repair hash errors automatically and it never erased remote bytes, but it was 1500 Euro before two years, Ak500 was 500 Euro..

Can renew and write NEC keys
I have the ak500+ , with this one i can renew and write the nec keys . Also i can write new keys with from infarent .
For ak500 i dont know .

Can write old W206 Motorolla chip
the old big key from a W208 have motorolla chip inside . You need the bin key file write it in with xprogor any other programmer . The new nec keys you can write them in ir socket . Just when u order them check if can program them with ak500( there is remark there that they say wich programmer can program them ).
The old keys with nec chip u desolder them put them in nec ak 500 socket fatrenew – then write and u done .
SO SIMPLE !!!

Can work for only ori NEC keys and older clone
its relative stable tool, but support only old models and can make only ori NEC keys and older clone. I am using this tool long time and i was satisfied with this. I used this tool only for read eis and make a keys. Check yourself, if price compare difference of support between standard and plus version is good for you.

Replace SiLab CP2102 chip, I had the same problem with my AK500. Also I use my bench top power supply. The one that came with the unit is poor quality.
When replacing the CP2102, you must have good experience with hot air gun and a good microscope or magnify glass. Else you will have the same problem if the contacts are not good.

Part 2: How to install AK500 (AK500+) software on Windows 7

to install the ak500 plus software in win7
1st u need to close the antivirus
then install as administrator
after that u need to go the installation folder find and install another 2 files.
AKdump.exe and CP210x.exe remember need install as administrator

Part 3: How to use AK500 (AK500+) database

The database is use to adapt a used esl to your existing eis
1) read eis dump
2) renew the esl erasing all lines but the last 2 using hex edit
3) “generate keys “using ak500 (not skc)
4) copy all keys dump’s & the renew esl file to the same folder
5) “open” renew esl file using ak500 plus
6) “process”using ak500.
Done!

Part 4: How to use AK500 (AK500+) hardware

Well, this is in case anyone needs to know how to use the HD. If it doesn’t already exist, create a “ESL” sub-directory in the “AK500” directory. Copy “MB_ESL.txt” from the HD to the “ESL” directory. Copy “tel.xls.exe” from the HD to the AK500 root directory. If you don’t want to deal with the external HD, create a partition, named “aK500”, and copy “AK500-BASE” from the HD to it. That’s it and it works very well for cars up to about 2009.

Btw, the usb to serial IC, always near the usb socket.
ak500-pcb-1
ak500-pcb-2
ak500-pcb-3

Part 5: How to program new keys using AK500 (AK500+) key programmer

Ak500 Programmer helps to program new key on MB w203:
Step a) open eis if the mcu is hc07 family then desolder the first one .
Step b) Put it in the ak500 holder , be careful with the point of the chip .
Step c) Choose the correct mask in software for the mcu .
Step d) Read the mcu and save the file .
Step e) Open the skc and load the bin file that you read .
Step f) Choose the key number that you see free.
Step g) Solder the mcu back in eis .
Step i ) Write the key if is new by infarent holder .
Step k ) Put the key in eis and start the car .


If i help you out, please give me a positive vote : )


Tech support from obdii365.com

http://blog.obdii365.com/2018/06/29/ak500-review-nec-keys-windows-7-install-database/

2018/06/27

2018 FVDI vs. 2015 FVDI vs. 2014 FVDI

FLY company released new FVDI 2018 Abrites commander. What’s the difference between FVDI new and old?

FVDI 2014 vs. FVDI 2015 vs. FVDI 2018
VersionFVDI 2014FVDI 2015FVDI 2018
Support original AVDI softwareYesYesYes
Support VVDI2 SoftwareNoNoYes
Use VVDI2 4th 5th IMMO for VWNoNoYes
Use VVDI2 key programmer for BMWNoNoYes
More functionNoYesYes
Picturefvdi-2014fvdi-2015fvdi-2018

Let’s look at what’s new in FVDI 2018 commander?
Does not have dongle,and it works offline,no need for activation. No limitation.
It adds some VAG and BMW functions from VVDI2.
fvdi-2018-function
FVDI, AVDI, VVDI 2018 Quick Loader V2.0
fvdi-2018-quick-loader-1
fvdi-2018-quick-loader-2
fvdi-2018-quick-loader-3
FVDI 2018 is compatible with VVDI2 software:
1. VVDI2-VAG  V1.2.2 (for Volkswagen,for Audi, for Seat,for Skoda)
2. VVDI2-BMW  V1.2.2 (for BMW,for Mini)
fvdi-2018-vvdi2-software

VVDI2 for VAG Special functions:

Immo 4th Key Learning/Mileage correction
1.Instrument – CDC3217/CDC3297/CDC3272 + 24C2
2.Instrument – NEC+24C32
3.Instrument – NEC+24C64
4.Instrument – NEC+24C64 (2013-)
5.Instrument– NEC+24C64 (2012 TFT color display)
6.Instrument– NEC+24C64 (2013 TFT color display)
7.Instrument– NEC+95320
8.Instrument– Motorola 9S12XHZ512(Golf6 MM7 – 2011)
9.Instrument– NEC+95320(Johnson Controls)
10.Instrument– NEC+95320(JCI – 2013 Bora/Jetta)
11.Instrument– Visteon
12. for VW for Passat B6/B7/CC
13.Touareg/Phaeton/A8/Cayenne/Bentley 4th immobilizer
14.for Audi A1 – NEC+24C64
15.for Audi A3/TT/R8 – CDC3217/3297 + 24C32
16.for Audi A4 – instrument Crypto RB4 (2001+)
17.for Audi A4 –instrument Crypto RB8 (2004+)
18.for Audi A6/Q7/Allroad – EZS-Kessy
19.for Audi Q3

Immo 5th Key Learning by OBDII
1. for Audi A4/A5/Q5 (Add key, All key lost)
2.for Audi A6/A7/A8, VW Touareg (Add key)

Others Immo type
1.for Audi A4/A6 (immobilizer box) -1997 – KWP1281
2.for Audi A8 (immobilizer box) -1999 – KWP1281
3.for Audi A2/A3/A6/TT/Allroad 1997+ – KWP1281
4.for Audi A4 1997-2002 – KWP1281
5.for Audi A4 2002+ – KWP2000
6.for Audi A8 1999-2002 – KWP1281
7.for Audi A3 – CAN
8.for Audi A6/Q7/Allroard 2005+ – CAN (Support OBD lost all key)
9.for Seat Altea -2007 – CAN
10.for Seat Cordoba
11.for Seat Ibiza (immobilizer box) -1999 – KWP1281
12.for Seat Ibiza 1999+
13.for Seat Leon – KWP1281
14.for Seat Leon -2007 – CAN
15.for Seat Toledo – KWP1281
16.for Seat Toledo -2007 – CAN
17.for Skoda Octavia – KWP1281
18.for Skoda Octavia II -2007 – CAN
19.for Skoda Octavia II 2007+ – CAN
20.for Skoda Superb – KWP1281
21.for Skoda Roomster – KWP1281
22.for Skoda Scout -2007 – CAN
23.for Skoda Fabia (immobilizer box) -1999 – KWP1281
24.for Skoda Fabia 1999+ – KWP1281
25.for VAG (immobilizer box) – KWP1281
26.for VAG KWP1281 Immobilizer – KWP1281
27.for VAG KWP2000 Immobilizer – KWP2000
28.for VW Polo (PCF7935 transponder) – KWP1281
29.for VW Touareg/Phaeton/Bentley/Cyenne Kline – KWP2000
30.for Audi A8 – CAN
31.for VW, for Seat,for Skoda -2007 – CAN
32.for Porsche forCayenne CAN – CAN
33.for VW Passat B6/CC – CAN (Support OBD lost all key)
34. for VW Passat B6/CC with EDC17/MED17 – CAN (Support OBD lost all key)
35.for VW Golf V with Visteon dash
36. for Audi A4 (RB8 Instrument Cluster) 2004+ – KWP2000
37. for VW, Seat, Skoda 2007+ – CAN (Support OBD lost all key)
38.for VW, Seat, Skoda, Audi with VDO NEC 2009+ – UDS (Support OBD lost all key)
39. for Lamborghini Gallardo -2005
40. for Lamborghini Gallardo 2005+
41.for VW with NEC+95320 or Magneti Marelli with Motorola 9S12 2009+ – UDS (Support OBD lost all key)
42. Immobilizer box use Megamos – KWP1281
43. New Beetle – KWP2000
44. Johnson Controls with 95320 – UDS (Support OBD lost all key)

Remote Learning by OBDII
Support adapt remote key with 09 unit (BCM system and BFM system) (4th immobilizer – UDS dashboard)

ECU Adaptation
1. ME7.1.1/7.5/7.8 master
2. ME7.1.1/7.5/7.8 slaver
3. MED 9.1 single
4. MED 9.1 master
5. MED 9.1 slaver
6. MED 9.5.10
7. EDC15x
8. EDC16U1
9. EDC16U1 master
10. EDC16U1 slaver
11. EDC16U31
12. EDC16U31 master
13. EDC16U31 slaver
14. EDC16U34
15. EDC16CP/EDC16CP34
16. EDC16CP34 master
17. EDC16CP34 slaver
18. EDC16C4 master
19. EDC16C4 slaver
20. SIMOS PPD 1.1/1.5(Siemens)
21. SIMOS benzin(Siemens)
22. for Porsche 5.2/7.8
fvdi-2018-vvdi2-vag-4th-immo-3
fvdi-2018-vvdi2-vag-immo-1
fvdi-2018-vvdi2-vag-4th-immo-4
fvdi-2018-vag-immo-5
fvdi-2018-vag-immo-6

VVDI2-for BMW Special functions:

Key Learning by OBDII
Support CAS1, CAS2, CAS3, CAS3+, ISTAP

Mileage Correction
Support CAS1, CAS2, CAS3, CAS3+, ISTAP

KeyMaker by dump
Support EWS1, EWS2, EWS3, EWS4, CAS1, CAS2, CAS3, CAS3+, CAS4
fvdi-2018-vvdi2-bmw-function-1
fvdi-2018-vvdi2-bmw-special-function-4
fvdi-2018-vvdi2-bmw-special-function-2
fvdi-2018-vvdi2-bmw-special-function-3
 http://www.obdii365.com/wholesale/2018-fvdi-commander-full-version.html

2018/06/26

DRB III Emulator Download, Install, Review, Car List

Free download DRB III Emulator on Mega:
drb3-download
DRB III Emulator is the exact scan tool software application used in Chrysler, Jeep, and Dodge dealerships to service non-CAN based vehicles from 1998-2007. The DRB III Emulator software application now runs on your personal computer and interfaces with our custom DRB III+ hardware device to enable all the functions of the original Chrysler DRB III Scan Tool and more. This software package even comes with non-powertrain ECU programming files to enable reflashing everything from BCMs to sliding door modules.

IMPORTANT: You can get DRBIII Emulator, DRBIII Enhanced Emulator setup and U-Scan Chrysler.
But no one holds responsibility of any risk you’ll take when using free DRBIII emulator software.

For security, you’re advised to the tested version sw with your Micropod 2 clone:


DRBIII Emulator Install:

For using DRBIII Emulator software with tools like VCI pod or Micropod II with witech version 14.xx.xx – 17.xx.xx, it depends on your device (clone or orig / old or newer release) and ONLY AFTER that, install DRBIII Emulator.

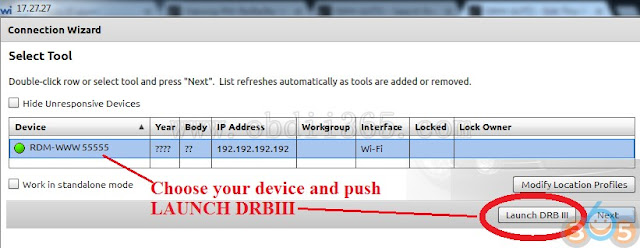

Watch screenshot.
install-drb3
Here is a step-by-step tutorial of DRBIII emulator on Micropod 2 clone:


DRB III Emulator Review: works on Micropod 2

I managed to make the Enhanced DRB III Emulator work with a micropod 2 clone on V17.04.27 Witech with Windows 7 32 bits all offline mode and no subscription.
First install Witech then install the DRB emulator and then the enhanced one.
find it here : C:\ProgramData\wiTECH\jserver\data\core\stubs
Or use the files provided in first post
Afterwards plug usb in pod then pod in the car turn ignition to on position and at last in the laptop
Open web browser, i used firefox and in the address bar put this and press enter : http://localhost:9876/launchExternalApp?appName=drb_iii_enhanced_emulator&locale=eng_ENG&deviceIp=172.22.22.22
It will launch the enhanced emulator.

DRB 3 Emulator Car List:

DRB 3 supports Chrysler, Jeep, and Dodge dealerships to service non-CAN based vehicles from 1998-2007 with protocols incl.
SAE J1850 PWM (FORD)
SAE J1850 VPW
SAE J2610 SCI (CHRYSLER)
ISO 15765 (Network Transport Protocol)
ISO 11898 (High Speed CAN)
ISO 14230 (Keyword2000)
ISO 9141/9141-2 (K-Line)
Chrysler Collision Detection Bus (CCD)
drb3-car-list
