Tools to Read Nissan SPANSION S6J329 MCU

 Entry question:

2021 Nissan Juke any tools able to correct mileage on these clusters?
Mileage in mcu SPANSION S6J329.
What type of programmer is this to read the s6j329??

S6j329 MCUa are found in newer Nissan Juke Sentra 2020+ and some Maada models.



What tool to read this MCU?

1. IProgPro original can read and write. You need iprogPro to do this. (Iprog+ not support anymore)

2. This Cluster can be read by Orange5 programmer (16mhz oscillator)

Ornage5 Nissan Juke S6J329C pinout

3. CGDI released update for CG100X
add support chip

S6J329C S6J334B
S6J334C
S6J334D
S6J334E

CG100X will read and write S6J329C is CPU is not secured.

4.

Digiprog4. with dp4 you can read and write.

Supports S6J329CLSP – programming/testing by diagnostic way (C22)



5. Use CAN Filter solution.

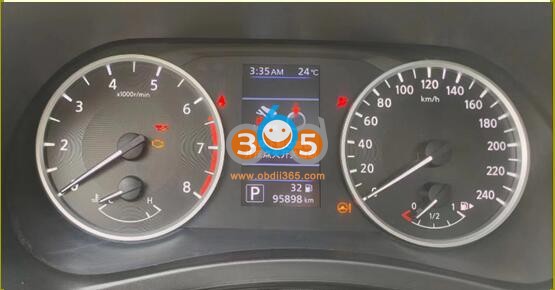

1). Type 1 Non-full LCD instrument cluster

Remember the mileage of the original car, remove the dashboard.

Read the 25640 data and someone to modify data. This guy has CAN Filter and modify data. We are not responsible for the damage. Email 4252106@qq.com.

Write 24c16 data to the filter (24c16) and 25640 data to the dashboard (25640), and short-circuit the can filter switch accordingly.

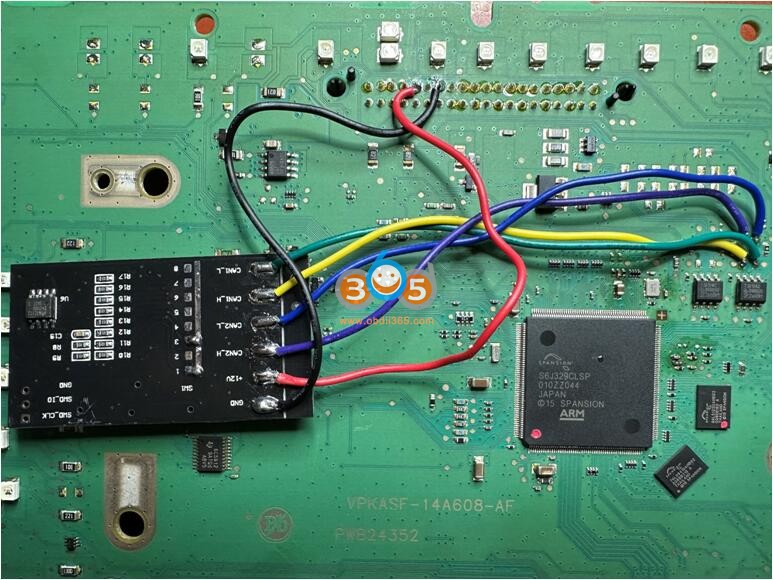

Solder the filter according to the wiring diagram provided, Install dash on to car after soldering is completed.

When the dashboard is installed on the car, the dashboard shows 0KM, and after driving 1KM on the road, it will be the mileage you want.

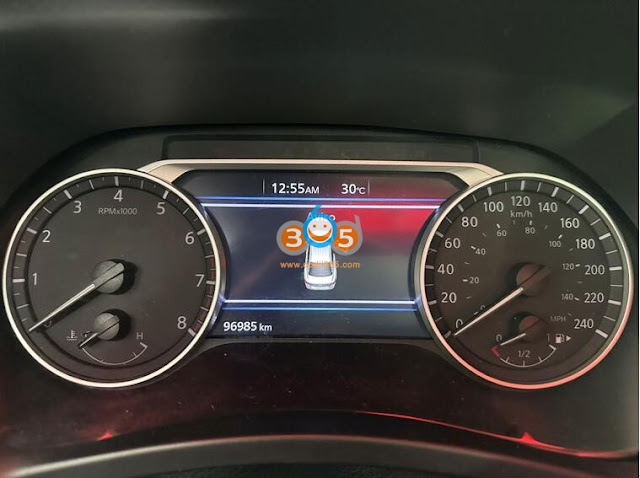

2). Type 2: Nissan full LCD instrument cluster

Remember the mileage of the original car, remove the dashboard.

Use programmer to read S6J329 MCU data, change to your desired mileage.

Also contact that guy what value you need to change.

Write 24c16 data to the filter (24c16) , short-circuit the can filter switch accordingly.

Solder the filter according to the wiring diagram provided, Install dash on to car after soldering is completed.

Driving 2 km on the road, everything is normal.

The new Sylvie is also the same as the Mazda3, which requires a filter to handle it.
However, the Mazda3 does not need to read the data of the S6J329, and it can be directly installed to achieve the purpose you want to modify the mileage.
