Ktag bench flashing ECU from Citroen C5 2008

This is IAW 6LPB Magneti Marelli Bench Flashing with a Ktag master ecu programmer in Boot Mode.

Citroen C5 bench flashing – STF10280 boot mode

Disassemble the ECU

Run Ktag kusite software

Select the model

Manufacturer: Citroen

Model: C5 (II)

Version: 2000 16v

Type: RFJ (EW10A)

KW: 103

HP: 140

Fuel: Petrol

MY: 2008

ECU: Magneti Marelli IAW 6LP

Mode: BOOT ST

FAM: 45

CHK: √

RO: √

Connection instruction

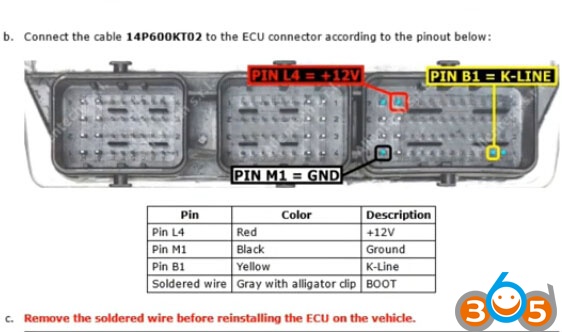

So, the connection mode of Magneti Marelli IAW 6LPB is like what displayed in the Galletto Manual Type B, but use KTag BOOT PIN connection

Connected to CAN High and CAN Low, but CAN protocol not woek

Connect ed through K Line

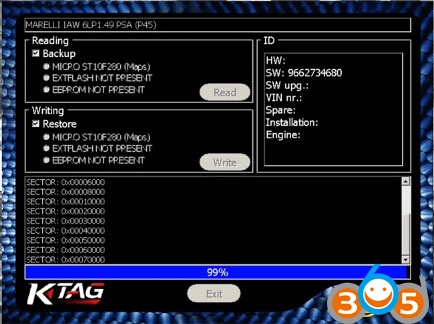

K-Tag is reading Marelli IAW 6LP1.49 PSA

Ktag master reads Marelli successfully

Save ECU data

Exit Ktag Ksuite software.
