How to Program MAN Truck TGA Key with Tango?

Question:
I have a MAN TGA year 2005 with FFR. I need to write a new transponder to start the truck but i can’t find the eeprom on the  FFR and does not have proper tool to do it.
Any help?
man-truck-write-key-tango-1

Answer:
Here’s demo guide on MAN truck key programming including eeprom location and tools suggestion.


Model: MAN truck year 2005
Device required:
Orange5 to read dump
Tango key programmer or TMPro2 to write key (TMpro2 require software license)
Transponder key compatible with TGA truck
man-truck-write-key-tango-2
Remove ECU
man-truck-write-key-tango-3

Front side of ECU
man-truck-write-key-tango-4

Back side of ECU
Find eeprom IC 95256 and clean IC carefully
man-truck-write-key-tango-5

man-truck-write-key-tango-6
Remove IC at your own risk.
man-truck-write-key-tango-7


Solder IC chip to Orange5 adapter
man-truck-write-key-tango-8

and connect adapter with Orange 5
Open Orange5 software, select M95256-V
man-truck-write-key-tango-9
Read IC95256 32Kx8 and save with any name
man-truck-write-key-tango-10

man-truck-write-key-tango-11

In Tango software, select Car Model->MAN->TGA (25128, 25256, MEG13)
man-truck-write-key-tango-12
Upload dump
man-truck-write-key-tango-13
man-truck-write-key-tango-14

Select any position for add key
man-truck-write-key-tango-15

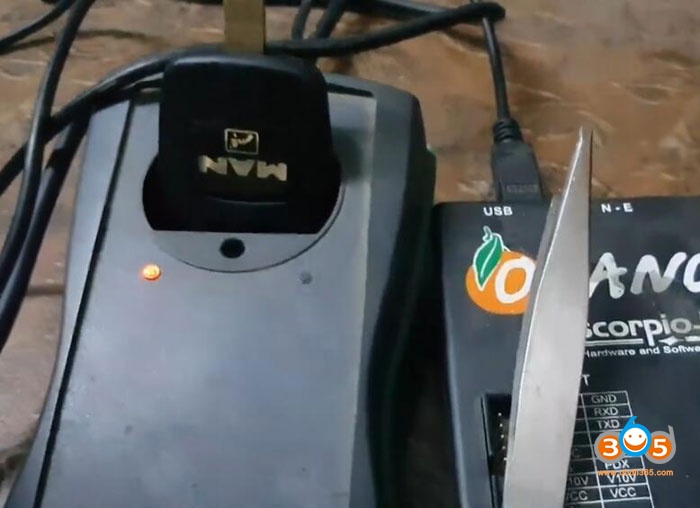

Insert key into Tango key programmer
man-truck-write-key-tango-16

Write key success
No need to write new file
Solder IC back to ECU
Test the new key.
Done.
