FVDI 2018 make virgin for Mercedes 722.9 7G-Tronic EGS and ISM

SVCI from China is working ok for all Mercedes 722.9. I’ve tested it with FVDI 2014 (works faster) and SVCI 2018 (flashing after virginize about 5 times slower).


Part 1: Virgin MB 722.9 Gearbox EGS
Part 2: Virgin MB 7G-tronic ISM (A80)


Part 1: fvdi 2018 make Virgin for Mercedes 722.9 Gearbox EGS
In order to prepare motion drive box control board 7 jettronic gears on Mercedes 164 W22 and similar we need food, with FVDI 2018 device and abbreviation ideally original but at least combine here.
The adapters are modified by me so that you can connect directly to sockets and computer proceed.

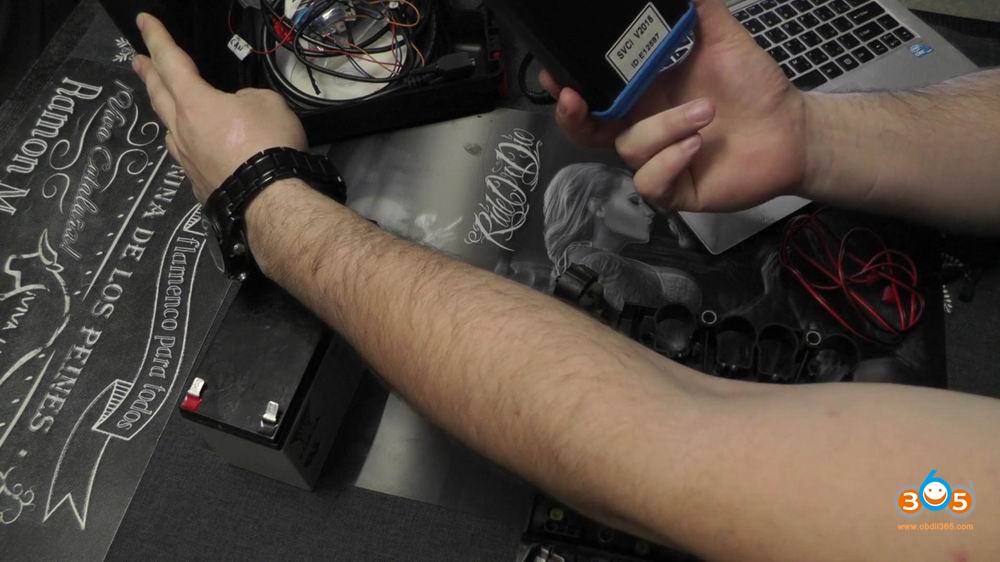

Connect the board played according to us
Go to Mercedes Program.

Connecting to server…OK

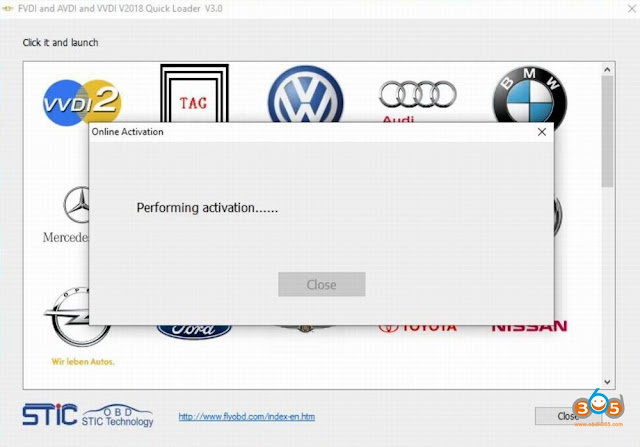

Performing activation…

Version 5.11

Loading MBLoader…

Connecting to the interface, please wait…

OBDII cable.
Select M-Class, W164 (2006-), Diesel, then “Electronic Transmission Control”.

Options.

Can Resistor “None”.

Read DTCs, then clear DTCs.

Click on “Adaptation”.

Set coding and then get coding.
Select “Make Virgin”.
The procedure has finished successfully.

Part 2: SVCI 2018 Mercedes Benz 7G-tronic ISM (A80) Virginize

The procedure on how to use SVCI 2018 to make virgin for Mercedes 722.9 Gearbox ISM.

Mercedes Benz 7G-tronic ISM can be reset before installing on the car.

Look at the box of 7G-tronic on Mercedes cars.

Look at the components of the ps3 immobilizer system so just install it on the car, and try to put into operation until you yourself fail during commissioning, it will show a communication error for zeroing of this unit, we need battery directly the FVDI 2018 itself and sam and laptop. I want to draw your attention to what this unit is removed from a European car, in principle, you can reset and already installed on the car through one GD connector. If god was removed from the American you see that in the block is American…

Be sure to check the correct polarity, pay attention that one the pin remains free, it is used on the car as an emergency. Power to gear shift, supply to power devices.

Go to Mercedes Program.
Connecting to server…OK
Performing activation…
Version 5.11
Loading MBLoader…
Connecting to the interface, please wait…
OBDII cable.

Select M-Class, W164 (2006-), Gasoline, then “Intelligent Servo module”.

Options.

Can Resistor “None”.

Read DTCs and clear DTCs.

Adaptation.

Set coding, then “Set Coding”.
Make virgin.
Security access successful.

Detach the transport protection of control module ISM, personal.





FVDI 2018 paid itself quickly.

Question: if SVCI 2020 is better in some cases for MB?
Answer: SVCI 2020 has more diagnostic functions, but not more engineering functions as virginize, flashing etc
