How to Connect VNCI 6154A via WiFi and WLAN?

 New VNCI 6154A VW Audi Skoda Seat diagnostic scanner will connect via USB, WiFi and WLAN.  Here we show how to connect it via WiFi and WLAN.





WiFi Connection

WiFi connection is super easy. Connect 615a vnci interface with laptop and vehicle, search WiFi, pair password and connect.

connect vnci 6154a via wifi 1

*The green board above is a self-made test platform. Just connect VNCI interface with the vehicle via USB.

connect vnci 6154a via wifi 2

2 indicators will turn on if connect with WiFi successfully.

connect vnci 6154a via wifi 3



Video





WLAN Connection

How to connect and configure VNCI 6154A via WLAN?

Run ODIS software on desktop

Go to Diagnostic Interface, detect the device as VAS 6154 and show serial number

connect vnci 6154a via wlan 1

connect vnci 6154a via wlan 2



Go to VCI configuration

Press icon on the up right corner (marked red below)

Select Connectivity->WLAN infrastructure

connect vnci 6154a via wlan 3

connect vnci 6154a via wlan 4

Check your local WLAN user name and password, i.e 31A-CZ

connect vnci 6154a via wlan 5

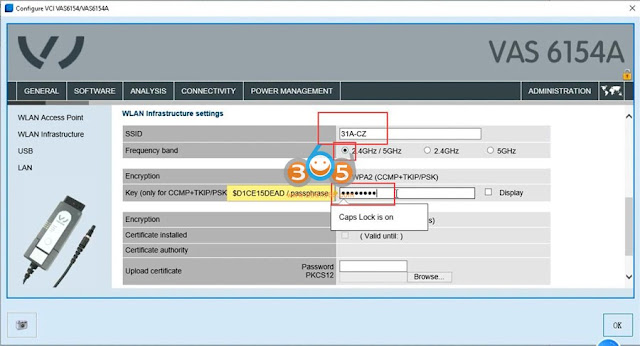

Then in WLAN setting, change SSID to 31A-CZ and input password in Key area

connect vnci 6154a via wlan 6

connect vnci 6154a via wlan 7

connect vnci 6154a via wlan 8

Press Accept to save setting.

connect vnci 6154a via wlan 9

Close Specify VCI interface and quit ODIS

Then disconnect power and restart the VNCI 6154A

Press and hold the switch button for 3s to switch the station connection mode until the yellow light turns on


connect vnci 6154a via wlan 10

VNCI 6154A comes with base station/hotspot mode switching button. If need to connect via WLAN, you need to switch the base station mode by switching button.

connect vnci 6154a via wlan 11

3 indicators will turn on after connecting with WLAN successfully.

Then ODIS software is ready to use.

connect vnci 6154a via wlan 12

USB and WiFi connections are recommended as they are easy to set up.
