Autel KM100 vs Xhorse vs Lonsdor KH100 vs Keydiy KD-X2

 How to choose the best remote generator and cloner? Here obdii365.com makes a comparison table list of the most popular remote makers in the aftermarket.

	AUTEL MaxiIM KM100	VVDI Key Tool MAX	VVDI MINI KEY TOOL	Lonsdor KH100+	KEYDIY KD-X2
Generate remote	√	√	√	√	√
Garage remote	X	√	√	√	√
Copy remote	X	√	√	√	√
Copy transponder chip	√	√	√	√	√
Generate special chip	√	√	√	√	√
Frequency test	√	√	√	√	√
Immobilizer	√, with PLC VCI200	X (requires mini obd)	X	X	X
ID/IC Copy	X	√	√	√	√
Unlock remote	√	√	√	X	√
Unlock Toyota smart key	√	√	√	√	√
Detect ignition coil signal	√	√	√	√	√
Remote simulator	X	√	X	X	X
Chip simulator	√	X	X	√	√
Write key to start	X	√	X	X	X
Collect FSK ASK EEPROM frequency	X	√	X	X	X
AutoVIN	√	X	X	X	X
Detect IR	X	X	X	√	X
Charge remote	X	√	√	√	√
Password calculation	√	√	√	X	√
ID48/ID48 96bit copy	X	√	√	X	√

In sum:

• KM100 has a better coverage than Xhorse in Dacia, Fiat, Honda, Benz, Open and Suzuki. KD-X2 has more coverage than KM100 in Alfa, Geely, Jaguar, Lada, Landrover, Lincoln, Maserati, Mini, Rolls Royce, Smart, VW etc.
• KM100 simulates ID46 47 48 49 8A chips, KH100+ can simulate 4D 46 48 47 chip.  xhorse does not.
• Xhorse Mini key tool is able to collect FSK and ASK frequency data to analyze the remote when the remote has got some problem.
• KM100 cannot copy ID48 or ID48 96bit transponder yet. Key Tool Max requires 10 remotes to activate the license.
• KM100 has auto vin feature (auto scan vin) which other devices don’t.  It is fast and easier.
• KM100 with PLC VCI200 interface to perform IMMO function for GM, BMW, Honda, Toyota, VAG directly. Key Tool Max requires Mini OBD seperately. Lonsdor and Keydiy require separate IMMO key programmers.
• All devices can be updated free for lifetime.
• http://blog.obdii365.com/2022/04/24/autel-km100-vs-xhorse-mini-key-tool-vs-kh100-vs-keydiy/

Yanhua Mini ACDP Module 24 Adds JLR 2018+ Smart Key

 Yanhua Mini ACDP released new module 24 for Jaguar Land rover 2018 and up JPLA immobilizer models key programming via OBD.

Module 24 function:

• Supports new JLR 2018+ OBD duplicate key (JPLA-14C104-AF)
  Supports new JLR 2018+ program new key by replacing RFA black processor or RFA module

Module Feature:

• When writing data to blank chip, you don’t need to solder wire. App has automatic pin detection. Refreshing data is safe and reliable.
• Yanhua ACDP platform can automatically detect the communication condition of RFA modules, including blank RFA modules and RFA modules after chip replacement.
• OBD programming, learning keys, simple and efficient.



JLR 2018+ OBD Duplicate key Function:

Menu path: Jaguar/Land rover Programming- Program Smart Key (2018-)- OBD Duplicate key

Function List:

Identify system info

Program key (Add key)

Program key (All keys lost)

Identify key infor

Modify special key ID

OBD duplicate 2018- JPLA smart key requires JLR key which ID can be modified like the Lonsdor 2018-2021 JLR key.

Yanhua ACDP Module 24 JLR 2018+ program new key by replacing RFA black processor or RFA module

RFA write initial data

Confirm that the current module is a new RFA module or the main chip of the RFA module has been replaced with a new chip.

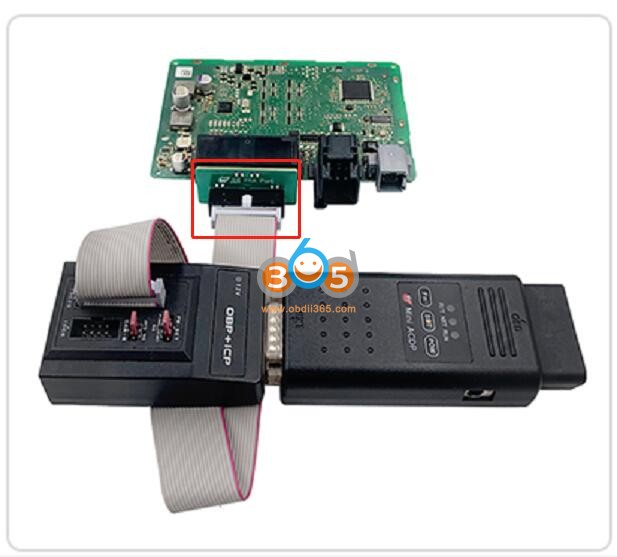

Module 24 contains the new chip, follow diagram to replace the new chip, no soldering required.

Replace RFA (JPLA/K8D2) Program Key

Add smart key (auto mode)

Add smart key (single step mode)

Change vehicle config data

Confirm that the vehicle has a new RFA module installed or the main chip of the RFA module has been replaced with a new chip and initial data has been written.

The replace RFA program key function cannot be performed if the current RFA module is locked.

Prepare at least two smarts keys that can be programmed.

If the car is in the alarm state, perform the function of Replace RFA program key after disabling the alarm.

https://www.obdii365.com/wholesale/yanhua-mini-acdp-module-24-for-jlr-2018-up.html

Free Download ECU Bench Tool Software

 Obdii365.com here provides ECUHelp ECU Bench Tool software for free download.

The software contains 2 parts:

EBT- Amt Bench Service Tool software: read and write ECU

License activated.

ECU Bench Tool allows us to read/write Bosch EDC ECU’s using the TriCore processor on bench without actually opening the lid – which also includes access to the full flash areas (IROM/XROM and EEPROM).

ECUHelp 2.0: check wiring diagram download VR files and tuning files

Wiring picture: to search and download wiring diagram

Virtual file: download virtual files (Not Free)

Tuning file: download ecu tuning file (Not Free)

ECU Service: DPF EGR REMOVE, DTC OFF  (Not Free).

ECUHelp ECU Bench Tool Software Free Download

Allows network connection. Update online.

Bench mode and boot mode are available.



ECU Bench Tool currently supports:

• Bench mode: Bosch MEDC17 based on TriCore microprocessor.
• Bench mode: Bosch MD1 MG1 based on Motorola MPC5777 / Aurix TC2xx microprocessor
• Bench mode: Bosch EDC16 based on Motorola MPC5xx microprocessor.
• Bench mode: VAG/VOLVO MED9 based on Motorola MPC5xx microprocessor (Other brands using ME(D)9 are currently not supported, will be added in a future releases)
• This tool is available as a master only. Flash checksums are included!



Software Display:

Download and Install EBTSetup.exe, install driver, connect device, run AMT BST software

Install ECUHelp 2.0

check, search and download ecu wiring diagrams

Download VR files, tuning files

Check ECU Bench Tool MG1 MD1 ME9 EDC16 EDC17 full chip list here:

https://www.obdii365.com/wholesale/ecu-bench-tool-ecu-programmer.html

Repair Porsche 12V Lithium Battery with Yanhua Mini ACDP Module 23

 Yanhua Mini ACDP released module 23 for 2018 to 2020 Porsche 12V Lithium Battery repair.

When the voltage of the new Porsche (2018-2020) 12V lithium battery is too low for a long time, the vehicle crashes, the vehicle has an electrical short circuit, etc. This leads to the battery being in protection mode, the internal program locks up, the vehicle cannot start, and the battery cannot be charged. This module can implement automatic data repair.

Module Feature:
ACDP uses a special interface board instead of welding wire. APP has automatic pin detection, perfect repair data. Data repair is safe and reliable.

What’s required:

Yanhua Mini ACDP host

Module 23 with interface board



How to connect Module 23 and repair Porsche 12V Lithium Battery?

Mask SPC5644B

Module probe position area diagram

Prepare ACDP host, OBP+ICP adapter, interface board and module 23

Connect the interface board correctly as pictures above

Connect ACDP device, OBP+ICP adapter, interface board and module 23

If need repair data, select ‘Data Restore’ function and follow instructions to repair the battery.

If the original 12V Lithium Battery module is damaged, clone it, first run ‘Full backup’, then ‘Full Write’.



Related reading:

Repair Porsche Cayenne 18-20 BCM Lithium Battery by CG100

Free Download JLR SDD V162 and Patch

 Jaguar Land rover service is down. Users cannot download JLR SDD software anymore. The current version SDD goes to V162.  Where to download V162 SDD?

OBDII365.com here provides software with patch for free download.



Compatible devices:

JLR Mangoose SDD/JLR Mangoose Pro

VXDIAG VCX SE/VCX NANO JLR SDD

DA-dongle

OEM JLR DoIP

and other JLR approved interfaces



Free download JLR SDD V162 software

JLR SDD V162.00 Full.exe

https://mega.nz/folder/DpBi3ZCT#InhSYxHhoB6d9sWG3ZyEwg

Mangoose/Mangoose Pro SDD Patch: https://mega.nz/#F!zBpSFarJ!phCGoR3RGYqOHYQa9kVBIw

Mangoose SDD/Mangoose Pro Driver: http://drewtech.com/downloads/index.html

VXDIAG VCX NANO/VCX SE  JLR SDD Patch https://mega.nz/folder/HJhn3AgI#Z9ftCLLNlO7exoCo6lC2aw



Operating System: Win XP, Win 7 32bit, Win10

Supports Multi-Languages: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean



Installation video reference:

OBDSTAR iScan BMW vs MTDIAG M1 BMW Motor Scanner

 OBDSTAR iScan BMW and MTDIAG M1 which is the better BMW motorcycle scanner?

Check the table comparison below:

	MTDIAG M1	OBDSTAR ISCAN BMW
Operating system	Based on Android 4.4 above (iOS App is under development)	Stand-alone, Android 5.1.1 tablet
OBDII Scan	X	√
Full Diagnostic	√	√
Auto Scan/VIN	√	√
Read ecu information	√	√
Read trouble code	√	√
Clear trouble code	√	√
Live data	√	√
Oil reset	√	√
Calibrate ESA	√	√
Calibrate SAF	√	√
Calibrate headlight	√	√
immo key (old models with remote control only)	√	X
Switch off transport	√	√
Action test	X	√
ecu programmer	X	√
Coding	X	√
CO Adjustment	X	√
10 pin Cable	√	optional
Update	2 years free	1 year free
Connection method	Bluetooth	obd cable
Coverage	BMW Motor all series: C, E, F, G, K, R, S;	BMW Motor all series: C, E, F, G, K, R, S;
Function List	MTDIAG M1 BMW Function List	OBDSTAR iScan BMW Function List
Language	English	English, French, Spanish, German, Italian, Portuguese

In sum:

• MTDIAG M1 can program old BMW motor immo keys with remote control. iScan BMW does not.
• OBDSTAR can do activation test, CO adjustment, coding and programming functions, MTDIAG does not.
• MTDIAG has 2 years free updates. OBDSTAR 1 year only. iScan also has multi-language menus.
• MTDIAG ($359) is much cheaper than OBDSTAR ($499)
• MTDIAG is an entry-level BMW motorbike scanner for DIYers. OBDSTAR iscan is a professional BMW motor diagnostic scan tool.
• To program BMW keys, better go for higher level MS80/MS50+ IMMO kit/ X300 DP Plus+ Immo kit.

http://blog.obdii365.com/2022/04/08/obdstar-iscan-bmw-vs-mtdiag-m1-motor-scanner/
