2024/04/30

Porsche BCM 2014 Damaged Solution

 Problem:

2014 Porsche Cayenne all keys lost, take the bcm out but saw someone already tried read it and cut the board, tried to read it with yanhua acdpvvdi progautel xp400 pro, hexprog but nothing.

He probably tried to read it with vvdi prog or autel and cut the board, autohex and acdp not required to cut,
We tried to fix it or read it with all and nothing read it.

Porsche BCM 2014 Damaged 1

It’s the ceramic one, the guy before cut it and damaged the point to solder to, we tried to solder there and the pin instead but still nothing

Porsche BCM 2014 Damaged 2

Unable to see the damage through the flux and with the crystal sitting there, remove the crystal from the board and clean all the area with alcohol so the damage is visible. There would be a short if too much solder gets under the crystal too.
We usually use thin copper wire to fix traces, bad coils are perfect source for it, do not even need to buy any.

UPDATED:
Make sure you have the MCU Pin 94 short (0 Ohm) to the test point as pictured, if it is not – you will have no clock input and it will not boot. Need to solder thin wire between the two. Also remove excessive solder and clean out the flux.

Fix BCM

fix porsche bcm



Read also:

Autel VVDI Xtool or ACDP to Read Porsche BCM 5M48H 2M25J

2024/04/27

Free Download Mitsubishi MUT-III 2023.06 Software

 Obdii365.com here provides 23061-00 2023 Mitsubishi MUT-III diagnostic software download free.



MUT-III is the comprehensive diagnostic suite that supports ABS, SAS, SRS, TPMS, EPB, and DPF, IMMO, ETACS systems and more for Mitsubishi ! You will essentially have dealer functionality at home!



Software version: 23061-00 [2023]

Operating system: Win10 63bit



Compatible devices: VNCI RNM, original RNM, J2534 adapters (J2534 requires replace file)



Examples of some Supported features:

  • Diagnostics of electronic systems of Mitsubishi vehicles
  • Viewing and recording of operating parameters in real-time
  • Adaptations implementation and resetting
  • Service procedures
  • Key/Remote programming
  • ETACS option coding
  • ETACS reset
  • Injector coding\testing\learning
  • Component calibration
  • Changing VIN number
  • And many more!



To use with VNCI RNM, you also need to download Bosch RNM VCI driver and VNCI device manager drivers.

Download both drivers in the previous post:

Free Download VNCI RNM Nissan Renault Mitsubishi Software

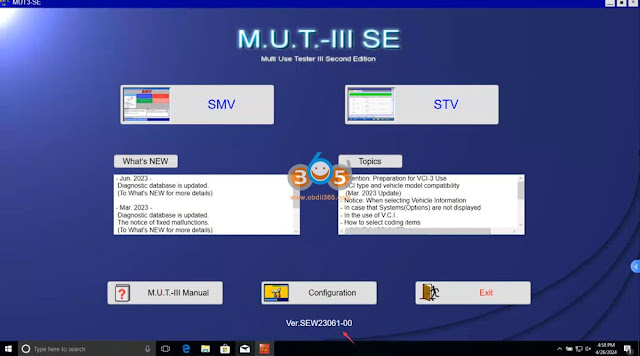

MUT 3 23061-00 Software Display:

Free Download Mitsubishi MUT-III 2023.06 Software 1

Free Download Mitsubishi MUT-III 2023.06 Software 2

Free Download Mitsubishi MUT-III 2023.06 Software 3

Free Download Mitsubishi MUT-III 2023.06 Software 4

Free Download Mitsubishi MUT-III 2023.06 Software 5

If use MUT II 2023 software with J2534 adapters, here is the passthru solution:
Download ‘common‘ registry replacement file.

Right click on mut3se shortcut, open file location, go one folder back to see the common folder.
Rename the common folder to anyname like commonORI for example.
Extract the common.rar to same location and start your mut3se from your desktop shortcut.



Some supported J2534 adapters:
  • Tactrix OpenPort 2.0 (Recommended)
  • ScanDoc Compact (Recommended)
  • Scanmatik 2 Pro (Recommended)
  • Godiag J2534
  • Bosch
  • CarDiag
  • Actia
  • Autel J2534
  • Mini-VCI
  • Chipsoft J2534
  • Other J2534 adapters – provided that the adapter is 100% compliant

Obdii3565.com engineer has tested Godiag J2534 with MUT3 2023. Working well.

2024/04/26

Free Download VNCI RNM Nissan Renault MUT Software

 VNCI RNM is a 3-in-1 diagnostic scanner for Nissan Renault and Mitsubishi. It is compatible with the original RNM driver. Obdii365.com provides software download for free.



Software version:

Nissan Consult iii plus software: V231.40
Renault Clip Software: V236
Mutihsitio MUT-SE software:  SEW22031-00

Operating system: Windows 7, Windows 8, Windows 10 and Windows 11.



Vehicle Coverage:

  • Nissan Ariya EV vehicle
  • Nissan Leaf EV vehicle
  • All Nissan gasoline vehicles
  • All Infiniti vehicles
  • All DATSUN vehicles
  • All Renault vehicles
  • All Mitsubishi vehicles

Supports Nissan/ Infinit/ GT-R/ DATSUN/ Renault/ Mitsubishi models diagnosis, modules programming immobilizer… etc.



Free Download VNCI Nissan V231.4

Download Link

vnci rnm nissan software 1

vnci rnm nissan software 2

Free Download VNCI Renualt V236

Link

Password: RenoCaNClip236

vnci rnm renualt software 1

vnci rnm renualt software 2



Free Download Mitsubishi MUT-III SE  SEW22031-00

Download Link


vnci rnm mut software 1

vnci rnm mut software 2

Free Download Bosch VCI Software (RNM) [RNM] -9.0.1422.248

Download Link

vnci rnm vci driver



Free download VNCI RNM Device Manager update tool (update firmware)

Download Link

vnci rnm device manager 1

vnci rnm device manager 2



Here is an example to set up/use VNCI RNM with Nissan software

2024/04/21

Program 2023-2025 Subaru BRZ GT86 All Keys Lost

 Here is the user working experience on Toyota GR86/Subaru BRZ 2023-2025 smart key programming.

No bypass cable for smartbox.

By obd, no eeprom. You cannot eeprom it.

No Smart box reset.

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 1

Credit to Mr. Marji.

Tried it as a Subaru nothing works. Techstream Will not even recognize the vehicle when the ignition is off. The ignition has to be on there is no emergency flashers no opening the door or closing the door will work nothing will work.

The customer provided smart box key and steering lock. Trying to program the existing steering lock module and it keeps failing so we had to install the one that came with a smart box and the key and even then the vehicle still wouldn’t start because you need to program another key and register the steering lock module and register ECU.

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 2

You cannot bench it there is no eeprom option anywhere, you cannot bypass it, there is no bypass cable for this Smart box. It’s a Subaru you cannot get tis to communicate unless ignition is on.



If you’ve never done this vehicle now you know.

No one was able to communicate with vehicle because the ignition does not turn on, The only way to turn the ignition on is to purchase Smart box with the key already married to it and the steering lock module

Step 1: replace smart box and steering lock module
Step 2: turn ignition on
Step 3: login with your techstream account
Step 4: Enter your VSP ID and passcode
Step 5: program a second key
Step 6: register CU steering lock
Step 7: put everything back together and get paid.



There is no other way to do this vehicle if all keys lost.

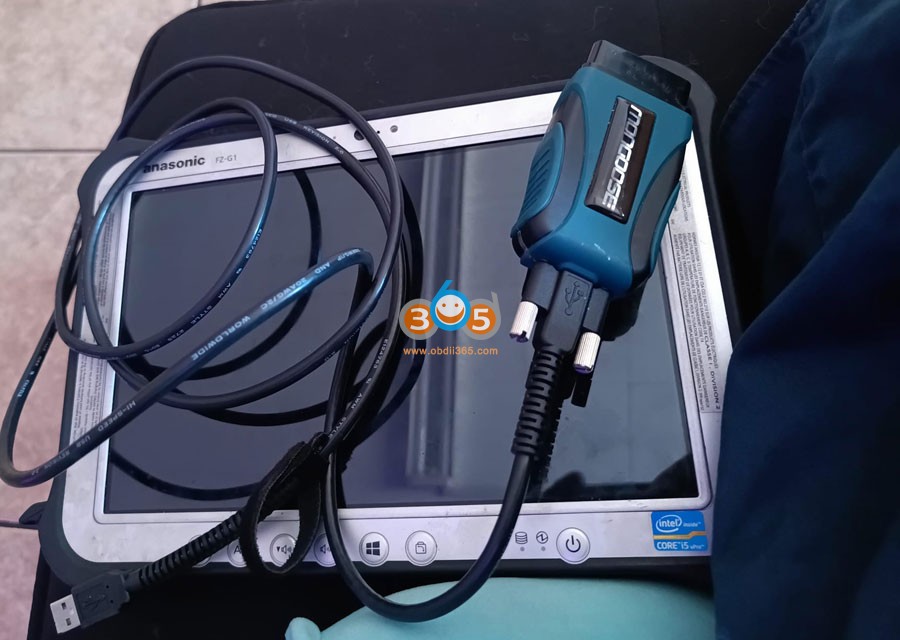

Only Mongoose can communicate. The J2534 from Autel IM608 kept failing when doing security functions.

This vehicle has no all keys lost procedure in Utility menu in techstream. It has immobilizer registration function and it will not approve unless you have a working key because it asks for owner confirmation when you’re adding a key and if you Don’t have a working key that’s how the procedure works.

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 3

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 4

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 5

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 6

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 7

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 8

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 9

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 10

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 11

Program 2023-2025 Subaru BRZ GT86 All Keys Lost 12


2024/04/19

Yanhua Mini ACDP Module 31 Update BDC 085 Version via OBD

 New! Yanhua Mini ACDP free update for those who have module 31 already!



ACDP/ACDP2 has free upgrade for users with module 31: BMW BDC (085 version) OBD.

Function:

Add key

All keys lost.



Method:

OBD CAN Method

OBD DoIP method



Supported versions: 085.010.080/085.010.100/085.010.110/ 085.010.130/ 085.011.120

Yanhua Mini ACDP Module 31 Update BDC 085 Version via OBD


Alientech Powergate 4 vs KESS3

 What is the difference between Alientech KESS3 and the new Powergate 4?

Alientech Powergate 4 vs KESS3

They are separate devices. They use different manager dashboards.



Operation Mode:

Powergate 4 is the OBD version of KESS3 (KESS3 with all OBD protocols). Powergate reads/writes ECU via Powergate App by OBD only.

KESS3 will read/write ECU/TCU via OBD, bench and boot mode.



Manufacturers:

Powergate4 only does car and motorcycle ECUs. It cannot do trucks, tractors and marines. KESS3 does.



Vehicle coverage:

Powergate 4 has the same OBD coverage as KESS3.

Check: vehicle list



VR Reading:

Powergate supports VR reading as KESS 3.



Language:

Powergate App: English & Italian

Kess3: Multi-language, English, Italian, French, German, Spanish, Portuguese, Chinese, Polish, Russian.



Subscription:

Powergate4 has no software subscription, KESS3 does.





Applicable Users:

Powergate 4: DIYers

KESS3: Professionals, repair shops



www.obdii365.com

2024/04/17

How to Use DPS for GM OBD Odometer Correction?

How to change mileage from OBD on GM group with DPS software?

Here is all required to do Odometer correction on GM. This doesn’t work on all but does cover a lot.

Try on vehicle if odometer changes it works if not then doesn’t. You are at your risk.



File download: GM DPS ODO

Including:

GM DPS 4.52.2 software

sos

Odometer correction GM zip. calibration file

Use DPS for GM OBD Odometer Correction 1

Procedure:

1). Check original odometer

Use DPS for GM OBD Odometer Correction 2

2) Install DPS 4.52 included in package (see also how to install DPS 4.52)
3) Enable Type 4 Also included

To enable type 4 apps in dps the following must be done

Create a new directory

c:\users\(whatever your username is)\sps\native\libs
copy these files to the directory you created

dllsecurity.dll
tisvcsv4.dll

4) Connect to vehicle with j2534 (vxdiag vcx nano gm or VNCI MDI2) and select get controller info see if it returns data this means DPS can communicate with vehicle
5) Select Type 4 Application and choose the GM ODO correction zip DO NOT unzip

Use DPS for GM OBD Odometer Correction 3

Use DPS for GM OBD Odometer Correction 4

Use DPS for GM OBD Odometer Correction 5

Use DPS for GM OBD Odometer Correction 6
6) Will pop up asking you to enter mileage. Enter mileage you desire and then OK

Use DPS for GM OBD Odometer Correction 7
7) Will work for a few seconds and then fail. The mileage will change though. If you find a good calibration file source. Try again.

Use DPS for GM OBD Odometer Correction 8
8) Unplug turn off ignition and done.



www.obdii365.com


Yanhua Mini ACDP Program 2016 BMW M5 CAS4+ All Keys Lost

 Yanhua Mini ACDP program 2016 BMW M5 All Keys Lost successfully.

Steps:
Read ISN from DME on bench
Program key via OBD

The DME was s63, connected with the n20 interface board, entered the s63 option in the menu, read the ISN code in seconds, and then OBD matched cas4+, it was perfectly done.
Yanhua Mini ACDP Program 2016 BMW M5 CAS4+ All Keys Lost 1

Yanhua Mini ACDP Program 2016 BMW M5 CAS4+ All Keys Lost 2

Yanhua Mini ACDP Program 2016 BMW M5 CAS4+ All Keys Lost 3

Yanhua Mini ACDP Program 2016 BMW M5 CAS4+ All Keys Lost 4





How to Use Alientech Powergate 4 and App?

 New Alientech Powergate 4 is the innovative solution for improving your vehicle’s performance or reducing fuel consumption directly from your smartphone through the Powergate App for Android, iOS, and EMUI (Huawei).  Powergate allows you to work via OBD on a single vehicle chosen from a wide range of supported Powergate models, sharing the same protocols as KESS3,

using both an internet connection for the Cloud and Bluetooth for communication with your smartphone.

This advanced technology ensures smooth and secure communication between the device and the vehicle at all times. With Powergate, living the experience of a real professional is within everyone’s reach.



Here are the instructions on how to use the Powergate 4 and App.



Contents:

  • Download Powergate App
  • Register Powergate4
  • How to Read ID with Powergate 4
  • How to Read ECU with Powergate 4
  • How to Write ECU with Powergate 4



1.Download Powergate App



Download Powergate App from Android Google Play Store or iOS App Store

Download Powergate App

2. Register Powergate App

If you don’t have an account, create your account.

Input user information.
A verification code will be sent to your email.
Enter the verification code.
Set login password.
Complete account information.
If you have an Alitench account, log in with your existing account.

Register Powergate App

3. Read ID

Run Powergate App

Login with Alientech ID

Connect Powergate4 box with vehicle via OBD socket

how to use Alientech powergate4 1

how to use Alientech powergate4 2

Start Powergate App
Connect Powergate with WiFi

how to use Alientech powergate4 3

Blue indicator turns on means Bluetooth connection is established.

how to use Alientech powergate4 4

One device communicates with vehicle, you will see yellow indicator turns on. Device is ready to use.

how to use Alientech powergate4 5

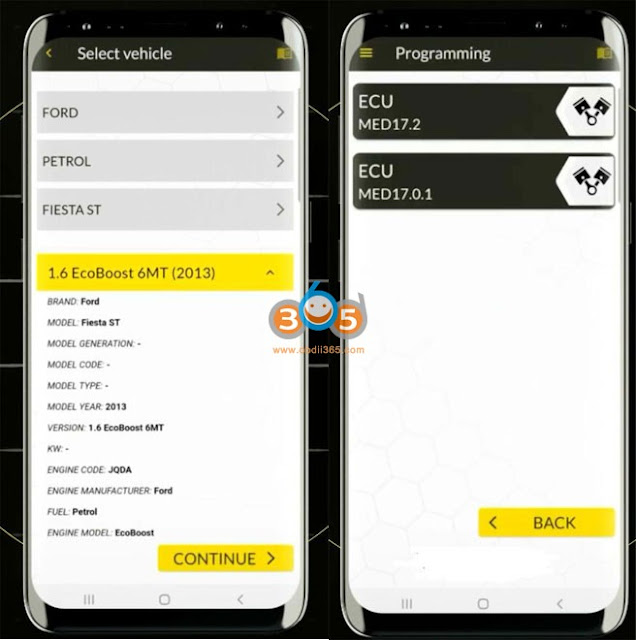

Select vehicle brand, type (gasoline or diesel), model and engine to continue
Select ECU type

how to use Alientech powergate4 6

Read ID
Connect a stabilized recharge to vehicle’s battery

Turn the ignition on, check the connections and press OK to continue.

Read ID successfully.

Turn ignition off.

how to use Alientech powergate4 7

how to use Alientech powergate4 8

how to use Alientech powergate4 9

4. Read ECU

Read ECU
Turn the ignition on, check the connections and press OK to continue
Reading ECU
The red indicator on powergate will flash
Turn ignition off
Read ECU successfully.

how to use Alientech powergate4 10

Sending file to Master

how to use Alientech powergate4 11

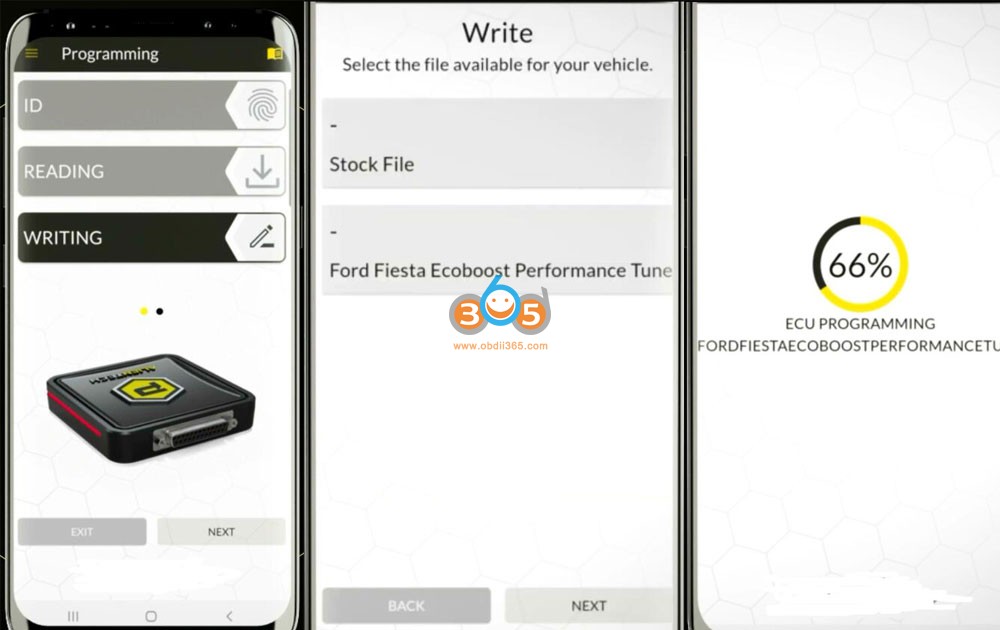

5. Write ECU with Powergate

Wait your master send file to your account.
Select Write ECU

Turn the ignition on, check the connections and press OK to continue.

Turn ignition off.

Writing ECU

Wait until completed.

how to use Alientech powergate4 12
