Read Renault HFM ISK PIN with Xhorse Multi Prog and ECU Tool

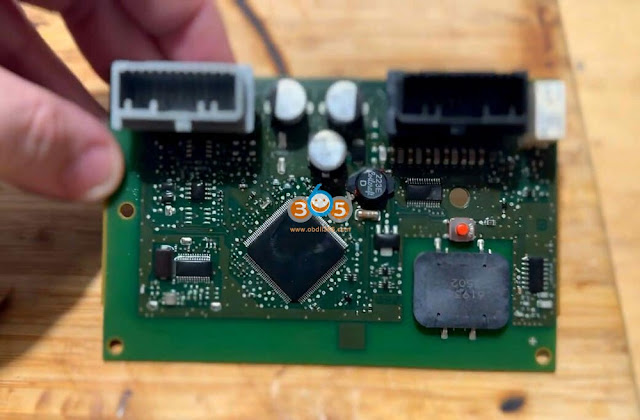

 How-to: read ISK, PIN and CryptoKey on Renault Clio IV Captur HFM (hand free module) Renesas v850 D07F3633 by Xhorse Multi-Prog and Renault Ecu Tool.

Read Renault HFM ISK PIN with Xhorse Multi Prog 1

Run Multi-prog software

Quick search HFM and select Clio HFM Module

check wiring diagram

Read Renault HFM ISK PIN with Xhorse Multi Prog 2

Read Renault HFM ISK PIN with Xhorse Multi Prog 3

Read Renault HFM ISK PIN with Xhorse Multi Prog 4

Connect HFM module with multi prog according to the wiring diagram

Read Renault HFM ISK PIN with Xhorse Multi Prog 5

Read Renault HFM ISK PIN with Xhorse Multi Prog 6

Read Renault HFM ISK PIN with Xhorse Multi Prog 7

Read D-flash. It reads D-flash in 8s. Save d-flash.

Read Renault HFM ISK PIN with Xhorse Multi Prog 8

Read Renault HFM ISK PIN with Xhorse Multi Prog 9

NOTE:

You can also read Renault HFM module with xhorse vvdi prog.

Check pinout to vvdi prog. vvdi prog neads FLMD1 pin. Find pin with a multimeter.

xhorse vvdi prog Renault HFM 1

xhorse vvdi prog Renault HFM 2

xhorse vvdi prog Renault HFM 3

xhorse vvdi prog Renault HFM 4

After read D-flash, run Renault ECU tool software, select Memory Dump->Upload D-flash read by xhorse multi prog

renault ecu tool read Renault HFM isn pin 1

renault ecu tool read Renault HFM isn pin 2

Select Learn Card->Clio IV/Captur Learn Key Card, ECM, ESCL, HFM

Press PIN Code from dump

renault ecu tool read Renault HFM isn pin 3

You will get ISK code, pin code and crypto key. Now you can program all keys lost.

renault ecu tool read Renault HFM isn pin 4
