How to use CGDI PRO to add CAS4/CAS4+ keys? (all keys lost)

About: How to add CAS4/CAS4+ keys (and when all keys are lost situation), using CGDI key programmers.

Optional tools: CG PRO 9s12, CGDI BMW, CG100 full-featured

Tutorial:
Part 1: Add CAS4 key
Part 2: Program CAS4+ all keys lost


Part 1: Add CAS4 key

CAS4 antitheft buggy key programming, needs to be read to configure the key, read CAS4 antitheft data and load data ro match keys

Step 1: Read CAS4 anti-theft data using CG Pro 9S12

CAS4 anti-theft computer module
cgdi-bmw-add-cas4-key-1
cgdi-bmw-add-cas4-key-2
CGDI-Pro and CAS4 wiring diagram
cgdi-bmw-add-cas4-key-3
Connect to CGDI-PRO
cgdi-bmw-add-cas4-key-4
cgdi-bmw-add-cas4-key-5
Decrypt successfully and save data
cgdi-bmw-add-cas4-key-6

Step 2: Match the new key with CGDI BMW

Go to “CAS4 Key Match”
cgdi-bmw-add-cas4-key-7
Load CAS data
cgdi-bmw-add-cas4-key-8
cgdi-bmw-add-cas4-key-9
Display key data in the CGDI interface
cgdi-bmw-add-cas4-key-10
Select the key position that need to be configured
Click to generate the dealer key
Put in the blank key into CGD I BMW
cgdi-bmw-add-cas4-key-11
Program a new key successfully!
cgdi-bmw-add-cas4-key-12
Work good as the original after learning
cgdi-bmw-add-cas4-key-13
DONDE!

Part 2: CAS4+ all keys lost programming

CAS4+ antitheft buggy key programming, needs to be read to configure the key, read CAS4+ antitheft data and load data ro match keys

Step 1: Read CAS4+ anti-theft data using CGDI-Pro

CAS4+ anti-theft computer module
cgdi-bmw-cas4-all-keys-lost-1
cgdi-bmw-cas4-all-keys-lost-2
CGDI-Pro and CAS4+ wiring diagram
cgdi-bmw-cas4-all-keys-lost-3
Connect to CGDI-PRO
cgdi-bmw-cas4-all-keys-lost-4
cgdi-bmw-cas4-all-keys-lost-5
Decrypt successfully and save data
cgdi-bmw-cas4-all-keys-lost-6

Step 2: Read engine ECU data with CG100

Note: CG100 Prog III full-featured support

Click on “ECU”
cgdi-bmw-cas4-all-keys-lost-7
Select the engine model
Here: BMW E series MEVD1724(N20)
cgdi-bmw-cas4-all-keys-lost-8
CG100 and CAS4+ wiring diagram
cgdi-bmw-cas4-all-keys-lost-9
cgdi-bmw-cas4-all-keys-lost-10
Read EEPROM
cgdi-bmw-cas4-all-keys-lost-11
Read data successfully and save data
cgdi-bmw-cas4-all-keys-lost-12
Display ISN and VIN
cgdi-bmw-cas4-all-keys-lost-13

Step 3: Match the new key by CGDI Prog BMW

Go to “CAS4 Key Match”
cgdi-bmw-cas4-all-keys-lost-14

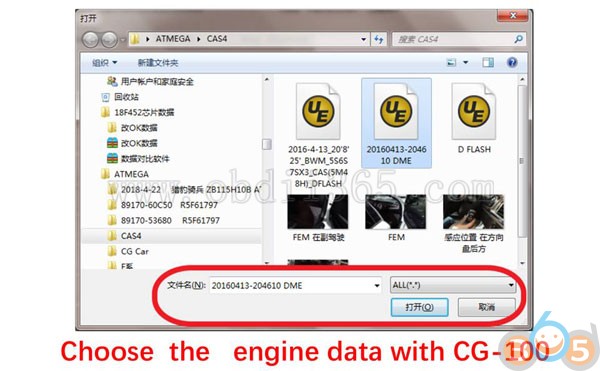

Load CAS data that read by CG-100
cgdi-bmw-cas4-all-keys-lost-15
cgdi-bmw-cas4-all-keys-lost-16
Display key data in the CGDI interface
cgdi-bmw-cas4-all-keys-lost-17
Select the key position that need to be configured
Click to generate the dealer key
Put in the blank key into CGD I BMW
cgdi-bmw-cas4-all-keys-lost-18
cgdi-bmw-cas4-all-keys-lost-19
cgdi-bmw-cas4-all-keys-lost-20
Program a new key successfully!
cgdi-bmw-cas4-all-keys-lost-21
Work good as the original after learning
cgdi-bmw-cas4-all-keys-lost-22
DONE!
