Yanhua Mini ACDP Adds BMW FEM key without soldering

How to: add a BMW FEM/BDC smart key with Yanhua Mini ACDP BMW key programmer without soldering/welding.

Preparation:
Download Yanhua Mini ACDP app on your mobile phone/PC
Support iOS Phone/iOS PC/Android phone (Qualcomm chipset mobile phones)/PC
Here’s the Android App QR code to download application directly.
yanhua-acdp-app
iOS App QR code is not yet released (coming soon).

Main Steps:
Step 1: Make connection
Step 2: Back up data
Step 3: Add key

Step 1: Connect Yanhua ACDP with FEM/BDC module no soldering

Remove FEM module
Connect FEM with Yanhua Mini ACDP & FEM module adapter follow by video guide (very detail)
Make a good connection
connect-yanhua-acdp-with-fem-1
connect-yanhua-acdp-with-fem-2
connect-yanhua-acdp-with-fem-3

Step 2: Backup Data

Pair Yanhua Mini ACDP with mobile phone via Bluetooth

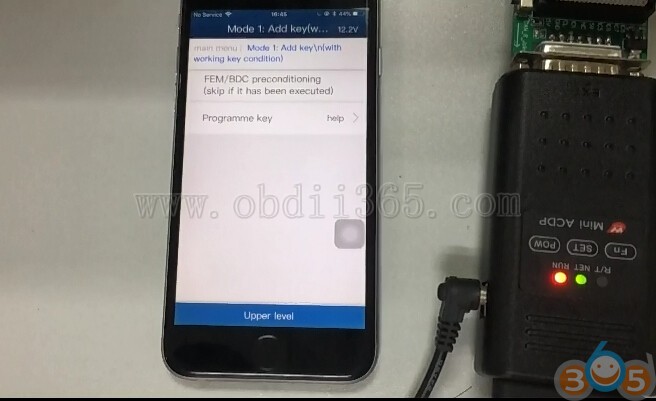

Select BMW Programmer->FEM/BDC-> Mode 1: Add key (with a working key)->FEM/BDC preconditioning ->ICP automatic
(Note: If you lost all keys, select Mode 2: all keys lost)
yanhua-mini-acdp-backup-fem-data-1
yanhua-mini-acdp-backup-fem-data-2
yanhua-mini-acdp-backup-fem-data-3
yanhua-mini-acdp-backup-fem-data-4
The emergency starting induction antenna indicator turns on if connection is built.
yanhua-mini-acdp-backup-fem-data-5
Shows FEM/BDC device information
yanhua-mini-acdp-backup-fem-data-6
Check FEM/BDC version information
If ACDP prompts: Bad connection with 95128/95256 pin. Please check whether the chip soldering is correct.
If conform no problem, press OK to continue
yanhua-mini-acdp-backup-fem-data-7
Reading coding info.
yanhua-mini-acdp-backup-fem-data-8
Back up coding data
Reading device info
yanhua-mini-acdp-backup-fem-data-9
Backup 95256 eeprom data to :/Documents/YHDocuments/ATmatch/bmw/FEM_BDC/
yanhua-mini-acdp-backup-fem-data-10
Backup Calc. bin file
Downloading file data
Writing into memory
yanhua-mini-acdp-backup-fem-data-11
Preprocessing the FEM/BDC. The whole process takes about 15-30 minutes. Wait until it access to 100%
Writing data into memory
yanhua-mini-acdp-backup-fem-data-12
yanhua-mini-acdp-backup-fem-data-13
Backup the written log data
yanhua-mini-acdp-backup-fem-data-14
Data backup succeed.

Step 3: Add FEM key

Go to FEM/BDC function menu, select Program Key
yanhua-mini-acdp-add-fem-key-1
Make sure you have a working key, new key and data backup
yanhua-mini-acdp-add-fem-key-2
Put the working key close to the emergency starting induction antenna.
Turn on ignition but not start engine.
yanhua-mini-acdp-add-fem-key-3
yanhua-mini-acdp-add-fem-key-4
Yanhua Mini BMW tool read key info., key ID, ISN code etc
yanhua-mini-acdp-add-fem-key-5
Select key position to learn key , i.e key #10, press LEARN button
yanhua-mini-acdp-add-fem-key-6
Put the new key close to the emergency starting induction antenna.
yanhua-mini-acdp-add-fem-key-7
Learn key in progress
yanhua-mini-acdp-add-fem-key-8
yanhua-mini-acdp-add-fem-key-9
Program ignition key success.
yanhua-mini-acdp-add-fem-key-10
Test the new key.
Done.
