How to use Yanhua Mini ACDP to Renew Benz 722.9 Gearbox?

Update! Yanhua Mini ACDP added Module 16 for Mercedes Benz Gearbox Clone / Refresh (No soldering, No Risk). What it covers and how to perform, please go on reading.



  1. Clone :

Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox;

Mercedes-Benz 722.8 (VGS2-FCVT) gearbox

  1. Refresh/Renew:

Mercedes-Benz 722.9-2 (VGS2-NAG2) gearbox

Mercedes-Benz 722.9 -3 (VGS3-NAG2) gearbox



Features:

The dedicated interface board connecting method will replace the traditional plugging wire method, which will prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

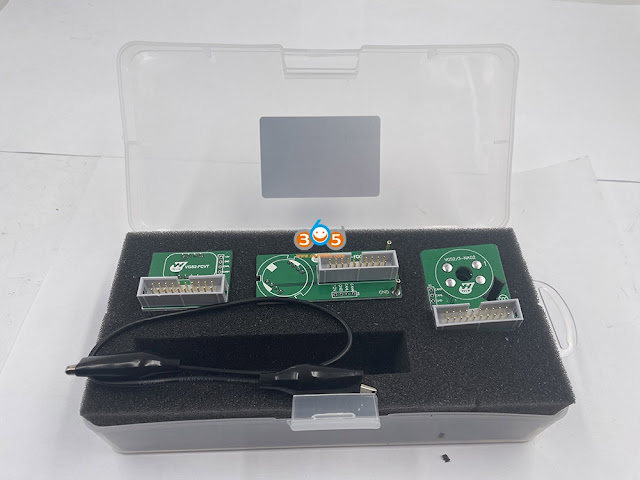

Look at the 3 dedicated interface board:

yanhua-acdp-benz-gearbox-module-1

yanhua-acdp-benz-gearbox-module-2

yanhua-acdp-benz-gearbox-module-3



The board and software authorization from:

https://www.obdii365.com/wholesale/yanhua-mini-acdp-benz-gearbox-clone-module.html



Let’s move on how to virgin/reflash Mercedes-Benz 722.9-2 (VGS2-NAG2) gearbox using Yanhua Mini ACDP:

Open Mini ACDP (on your phone or on your computer), it will pop up there is new update, just click on Yes to update to the newest version.


Select Benz function->  Gearbox clone/refresh->C class->VGS2-NAG2->Refresh->

yanhua-acdp-renew-benz-gearbox-1

yanhua-acdp-renew-benz-gearbox-2

yanhua-acdp-renew-benz-gearbox-3

yanhua-acdp-renew-benz-gearbox-4

yanhua-acdp-renew-benz-gearbox-5

Loading hardware program to 100.

As you can see, it will show if the device is connected successfully, so that you can go the next step.

yanhua-acdp-renew-benz-gearbox-6

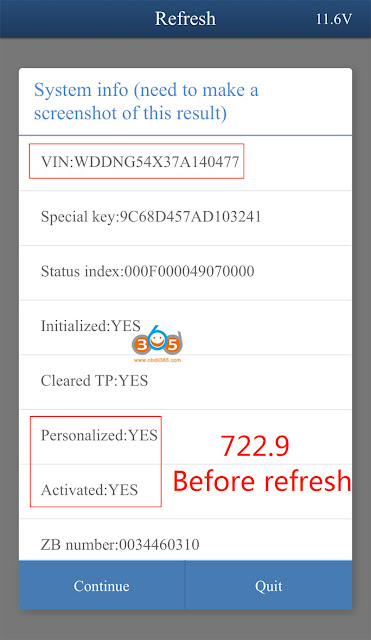

It will have prompt “Please connect ACDP with gearbox”.

Connecting system, please wait…

Reading system info, please wait…



Have the system info.

Personalized: Yes

Activated: Yes

Note: Please screenshot the result.

yanhua-acdp-renew-benz-gearbox-7




Back up the file (it is very important)

yanhua-acdp-renew-benz-gearbox-8




Next is to get the erasing password by automatically or manual.

We select “Automatic” and follow the prompt not to unplug or plug the device during the online password calculation process.

yanhua-acdp-renew-benz-gearbox-9


yanhua-acdp-renew-benz-gearbox-10


Erase system data until finish.

yanhua-acdp-renew-benz-gearbox-11


yanhua-acdp-renew-benz-gearbox-12



Generate the logs.

Back up the file.

yanhua-acdp-renew-benz-gearbox-13




It shows Refresh yes, click on “Indentify” to confirm.

yanhua-acdp-renew-benz-gearbox-14

Alright, it really works, as you can see:

Personalized: NO

Activated: NO

yanhua-acdp-renew-benz-gearbox-15




Back up the file;

Identify system information finish.

yanhua-acdp-renew-benz-gearbox-16


yanhua-acdp-renew-benz-gearbox-17


Mercedes-Benz 722.9-2 (VGS2-NAG2) gearbox refresh using Yanhua ACDP successfully.



Please back to read on how to clone Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox and Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.



Enjoy!
