KT200 Read and Write VAG MG1CS001 SPC5777 ECU

 MG1 MD1 ECUs are verified working with KT200/KTM200/ECUTuner ecu programmer.  Obdii365.com engineers have tested VAG MG1CS001 SPC 5777 reading and writing without problem, fast in 5 minutes.

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 1

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 2


MG1CS001 VAG SPC 5777 Pinouts



Follow wiring diagram to connect MG1 ECU with KT200 ecu programmer via Bench box

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 3

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 4

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 5

Enable network connection (MUST DO THIS)

Run KT200 software

Select Car OBD module -Select driver

Select VW SPC 5777- VAG MG1CS001

Then connect

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 6

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 7

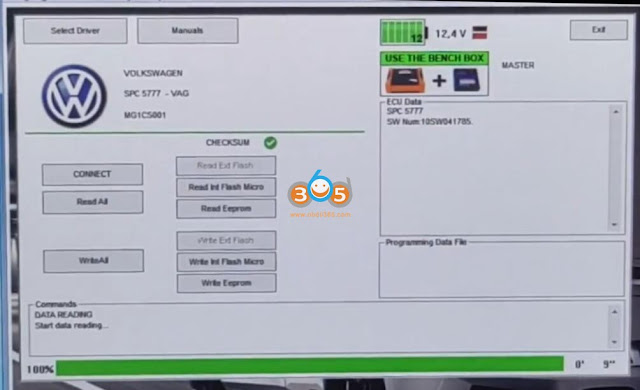

Connect device, read ECU info.

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 8

Read All
input file name you desire to save

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 9

Read data in the process. Make sure the voltage is 12V+.

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 10

Read All data finished. turn dash off

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 11

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 12

Select Write int Flash Micro
Selected the modified data by WinOLS
Load original file for checksum correction
Confirm checksum correction

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 13

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 14

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 15

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 16

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 17

KT200 Read and Write VAG MG1CS001 SPC5777 ECU 18

Write ECU successfully.



Check:  KT200 ECU list.pdf
