China and ECU Kess V2 tricore cable which is better

How to rework Kess V2 master ecu tuning kit Tricore adapter cable to work as a real EU Made cable? Here are Kess V2 Tricore cable pinout china vs. eu made.

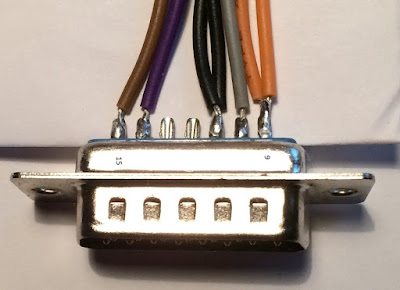

Kess Tricore cable china clone

Kess Tricore cable EU made

Chinese Kess V2 tricore cable pinouts:

This is correct wiring for tricore adapter cable

pin 1 = brown
pin 2 = purple
pin 3 = not connected
pin 4 = blue
pin 5 = 2x red
pin 6 = not connected
pin 7 = white
pin 8 = not connected
pin 9 = orange
pin 10 = gray
pin 11 = 2x black
pin 12 = not connected
pin 13 = not connected
pin 14 = yellow
pin 15 = green

on some chinese clone cables. pin 1, pin 2, pin 14 and pin 15 to be wrong  and this seems to be the case with a lot of them after researching.

The Colours above are correct for the Tricore adapter to work.

EU kess v2 Tricore cable pin out:

PIN 1 = brown –> reset (output)

PIN 2 = purple –> VPP switched voltage

PIN 3 = not connected

PIN 4 = blue –>CNF1 (multifunction boot support)

PIN 5 = red –> +12V supply

PIN 6 = not connected

PIN 7 = white –> CAN-High

PIN 8 = not connected

PIN 9 = orange –> +12V switched voltage

PIN 10 = grey –> Boot (low switched)

PIN 11 = black –> GND

PIN 12 = not connected

PIN 13 = not connected

PIN 14 = yellow –> K-Line

PIN 15 = green –> CAN-Low

Kess V2 Tricore cable China vs. EU made

Check the differences and wire up to EU pinout:

PIN 1 = green

PIN 2 = yellow

PIN 14 = purple

PIN 15 = brown

Change differences and now it works

To avoid issues, quality guaranteed cables should be a good choice.

Obdii365.com has kess v2 kits with a working Tricore cable, all tested by professionals:

http://www.obdii365.com/wholesale/new-kess-v2-unlimited-token-version.html

Good luck!
