Launch Diagun IV Program a Used Nissan ECM

As titled, possible to program a used Nissan ECM by using Launch X431 Diagun IV OBD2 diagnostic scanner?
A: Yes. Check step-by-step guide below:

Procedure:
diagun-iv-program-nissan-used-ecm-1

diagun-iv-program-nissan-used-ecm-2
Connection Diagun IV with vehicle via DBscar Bluetooth connector
(Note: pocket juice is a portable charger.)
Run Diagun IV application
Select Diagnose function->Asian->Nissan
diagun-iv-program-nissan-used-ecm-3
diagun-iv-program-nissan-used-ecm-4
connecting bluetooth
diagun-iv-program-nissan-used-ecm-5

This vehicle has a 16-PIN standard connector
diagun-iv-program-nissan-used-ecm-6

Reads VIN
diagun-iv-program-nissan-used-ecm-7

Choose Maintenance function->NATS (Nissan Anti-theft system)-> Manual selection test->After replacing or installing operation->Replace ECM (Used Part)
diagun-iv-program-nissan-used-ecm-8
diagun-iv-program-nissan-used-ecm-9

diagun-iv-program-nissan-used-ecm-10

diagun-iv-program-nissan-used-ecm-11
diagun-iv-program-nissan-used-ecm-12
This procedure erase all registered keys. Therefore, all of the customer’s keys should be obtained before starting this procedure.
Press OK to continue.
diagun-iv-program-nissan-used-ecm-13
Follow procedure below to operate:
1. Get Immobilizer code (PIN) for initialization from the following
encrypted PIN (5 or 12 digits)
Encrypted PIN
(5 or 12 digits): 1288a
2. Input PIN for initialization into the following input column
IMMO code for initialization
Old Password (Before 2010): 5521
New Password (After 2010): 3521
3. Press Next. The system starts communication with the vehicle.
diagun-iv-program-nissan-used-ecm-14
This is an old model, so here we enter old password
diagun-iv-program-nissan-used-ecm-15

Operate according to following procedure:
1. Insert ignition key into ignition key cylinder and turn on ignition switch.
After performing this operation. The system automatically proceeds to initialization ECU.
diagun-iv-program-nissan-used-ecm-17
Perform key registration.
1. Remove inserted ignition key
2.Insert unregistered ignition key into ignition and turn to ON position. and then wait for 5 seconds or more.
3. Check the security indicator flashes for 5 times
4. Turn ignition switch to OFF position. Remove ignition key and wait for 3s or more.
5. A Maximum of 5 ignition keys can be registered by repeating procedure from step 2 to step 4 using unregistered ignition keys.  Press Next to finish key registration mode.
diagun-iv-program-nissan-used-ecm-18
Program used ECM finished. Now you need to register VIN with ECM.

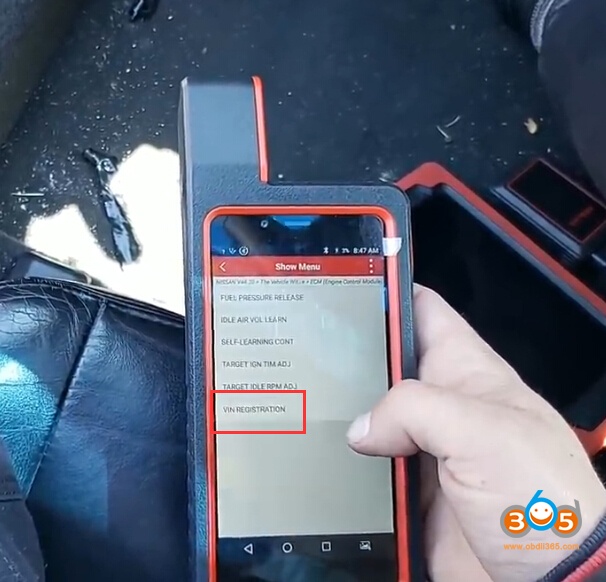

Go to System Scan->ECM (Engine Control Module)->Special Function->VIN Registration
diagun-iv-program-nissan-used-ecm-21
diagun-iv-program-nissan-used-ecm-22
diagun-iv-program-nissan-used-ecm-23
diagun-iv-program-nissan-used-ecm-24

Turn ignition switch to ON position but don’t start engine during the procedure.
Follow Diagun 4 scanner prompts until success.
