What Tool to Read VAG Delphi DCM6.2V ECU?

 What tool to read and write Delphi DCM6.2V by OBD?  Can we read other than by OBD?

Here is the clue.



Foxflash/KT200: VR read by OBD mode, if there is no VR file available then it cannot write it.

PCMTuner: no possible with the pcmflash clone, only original pcmflash can do by OBD (ori. pcmflash will release bench solution for this in the next update)

Flex: OBD VR read and Boot mode (VR read similar to FoxFlash, update ecu by original file)

Kess v2/Ktag: some clone versions may work by OBD mode



1.Foxflash

foxflash/kt200 read and write DCM6.2V via OBD without issue.

This ECU needs high voltage. At least 13.5v on car System! Only in car with immo!

If not VR file to suit vehicle is on server, we must find an original file to match, and VR file must be from your tool – it is different format than others. Also as said, ECU must be in car.

Support for all Delphi DCM6.2AP/A/C/V
foxFlash is now able to perform the following operations: on DCM6.2A/C/V
OBD Read
OBD Write



Foxflash/KT200 DCM6.2V Vehicle List

Audi car A3 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Audi car Q2 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

MAN truck TGE 2.0 177CV Delphi DCM6.2V SPC5674 VR/W OBD

Seat car Arona 1.6 TDI Delphi DCM6.2V R/W OBD

Seat car Ateca 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Seat car Ibiza 1.4l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Seat car Leon 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Seat car Toledo 1.4/1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Skoda car Fabia 1.4l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Skoda car Kodiaq 1.6 TDI Delphi DCM6.2V SPC5674 VR/W OBD

Skoda car Octavia 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Skoda car Rapid 1.6l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Skoda car Scala 1.6 TDI Delphi DCM6.2V SPC5674 VR/W OBD

Volkswagen car Golf VII 1.6/2.0l TDI Delphi DCM6.2V SPC5674 VirtW OBD

Volkswagen car Multivan 2.0l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Volkswagen car Polo 1.4l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Volkswagen car Polo 1.6l TDI 95cv Delphi DCM6.2V SPC5674 VR/W OBD

Volkswagen car T6 Bus 2.0l TDI Delphi DCM6.2V SPC5674 VR/W OBD

Volkswagen car T-Roc 1.6 TDI Delphi DCM6.2V SPC5674 VR/W OBD





2.PCMTuner

pcmtuner has no protocol to read DCM6.2.

Only original on OBD mode with module 84.

No real read by Bench mode, where we can only do tuning like immo off, and clone is impossible.

Good news is that original pcmflash will release next update this ecu will can be read on bench by open it.





3.Flex: OBD and Boot

VR read via OBD, must be done inside car.

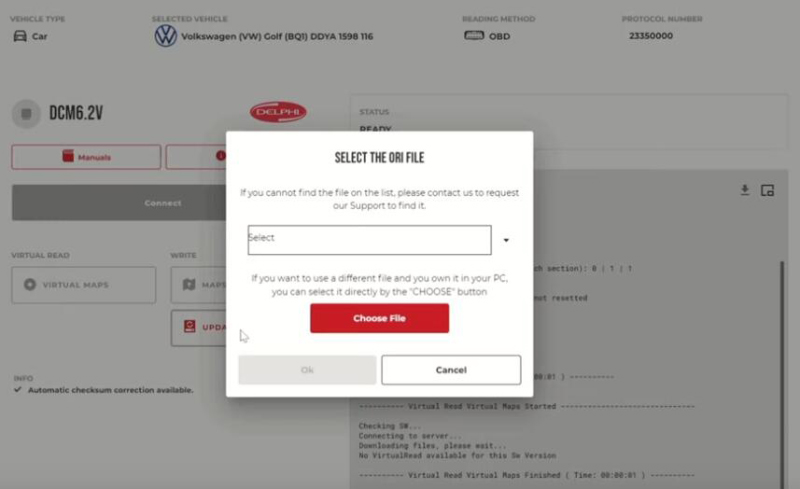

If no Virtual Read is available for this SW Version DCM6.2V.

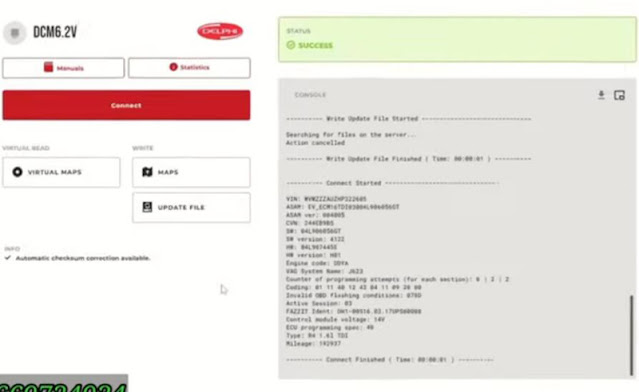

Update file by original file.

Flex in exclusive launched new Update with DCM6.2V Boot protocol!

• (Boot) VAG Delphi DCM6.2V MPC5674 Read/Write/Checksum Internal Flash, Full Read/Full Write Clone/Restore

Bootloader mode for programming Delphi DCM6.2V engine ECUs installed on VAG group cars is now available: a new exclusive solution released on Flex.

The protocol allows to read and write the entire contents of the Flash memory (virtualized EEPROM) and to recalibrate the real maps of the control unit. Furthermore, this solution allows to restore in case of writing an incorrect Mod File (example: altered power class).





4. Magpro x17

Do them with magpro x17, works well. It’s a OBD protocol, virtual read only.







5. Kess v2/Ktag

People have done many vag with dcm6.2v, with original kess v2, and there was always virtual on the server.

There are many versions of software in vag, sometimes yes sometimes no with dcm6.2v

Clone Kess/ Ktag vary in functions, some of which may work on OBD mode.





FYI:

If DCM6.2V ECU crashed after OBD write, write goes to 100% but car does not start. You have to get a new ecu replaced.

Top Tools to Bypass Toyota All Keys Lost 12-Digit Security Code

 When you are trying to program a key for newer Toyota 8A/4A (2018+) proximity all keys lost it will ask you for the 12-digit security code. How to get these codes?

The newer Toyota’s have an extra security component even adding keys diagnostically will be a problem unless you have the special password.

These rolling code changes every time you plug in. You can buy code online directly or have other tools to bypass the pin code.



Bypass method:

Here are top tools that will bypass seed code for Toyota 8A/4A smart key.



1). Autel MaxiIM IM608/IM508 series

Autel MaxiIM had an update for Toyota. It supports back up immo data for 8A smart keys via OBD. The Gbox is not needed. Connect right into the OBD2 port. It did back up the data. Then go into key learning, follow the steps, it asks if back up, click Yes and it went into learning mode. And successfully learn a New key via OBD II without doing a In-code or out-code, or any Password.



2 Ways to bypass pin with Autel:

a. Very simple use apb112 emulator and it takes 5 mins.

You need to generate a master key with the apb112 then use it to add a key.

Autel+apb112+ right key.

Example:

Autel IM508 Program 2019-2022 Toyota RAV4 Free Pin by OBD

b.

You can also do it without the apb112 just have to do a smart box reset and wait the 16min.

Much easier and cheaper to do it with the apb112 way. And besides it can be used for other things also.

Just make sure to have the right key.

If it is a US car, generate Autel ikey universal remote. Just reset smart box then program keys afterwards. Do without 12 digits reset immo. Always 15min or so reset to get access to AKL ! Same with Subaru. And you need to unlock key if you purchase an original used key.



IM608 also release an update for 4A proximity add key and all keys lost free pin code via OBD in May 2023.



2). OBDSTAR X300 DP Plus/X300 pro4



You will need the CAN Direct Kit to bypass rolling code for 8A/4A proximity. The kit contains a Toyota 24 cable (for Corolla 4A) and Toyota 27 cable (for 4A,8A-A9, 8A-AA Toyota vehicles.)

The CAN DIRECT cable and the online calculations are working spot on, no issue 2018 to 2022 on all (A9 A9 and AA AA).

All keys lost requires Key SIM emulator as well.

Functions and Vehicle List

• 1. 2019- COROLLA 4A proximity key programming (free pincode);
• 2. 2021- COROLLA CROSS 4A proximity key programming (free pincode);
• 3. 2021- COROLLA CROSS HV 4A proximity key programming (free pincode);
• 4. 2021- COROLLA SPORT 4A proximity key programming (free pincode);
• 5. 2021- COROLLA SPORT HV 4A proximity key programming (free pincode);
• 6. 2021- COROLLA TOURING 4A proximity key programming (free pincode);
• 7. 2021- COROLLA TOURING HV 4A proximity key programming (free pincode);
• 8. 2021- COROLLA HV 4A proximity key programming (free pincode);
• 9. 2019- LEVIN 4A proximity key programming (free pincode);
• 10. 2021- LEVIN HV 4A proximity key programming (free pincode);
• 11. 2021- ALLION 4A proximity key programming (free pincode);
• 12. 2021- LIVIN 4A proximity key programming (free pincode).
• 13. 2018- TOYOTA CAMRY proximity(8A-A9) key programming (free pincode)
• 14. 2018- TOYOTA C-HR proximity(8A-A9) key programming (free pincode)
• 15. 2018- TOYOTA IZOA proximity(8A-A9) key programming (free pincode)
• 16. 2018- LEXUS RX450H proximity(8A-A9) key programming (free pincode)
• 17. 2018- TOYOTA HIGHLANDER HV 8A-AA proximity add keys & all keys lost (free pincode)
• 18. 2018- TOYOTA RAV4 8A-AA proximity add keys & all keys lost(free pincode)
• 19. 2018- TOYOTA RAV4 HV 8A-AA proximity add keys & all keys lost (free pincode)
• 20. 2018- TOYOTA AVALON 8A-AA proximity add keys & all keys lost (free pincode)
• 21. 2018- TOYOTA CROWN KLUGER HV 8A-AA proximity add keys & all keys lost (free pincode)
• 22. 2018- LEXUS ES 8A-AA proximity add keys & all keys lost (free pincode)
• 23. 2018- LEXUS UX 8A-AA proximity add keys & all keys lost (free pincode)
• 24. 2018- LEXUS RX 8A-AA proximity add keys & all keys lost (free pincode)
• 25. 2018- TOYOTA CROWN 8A-A8 all keys lost(free pincode)
• 26. 2018- TOYOTA LAND CRUISER 8A-A8 all keys lost(free pincode)
• 27 2018- HIGHLANDER(petrol) 8A-A8 all keys lost(free pincode)
• 28. 2018- TOYOTA PRADO 8A-A8 all keys lost(free pincode)
• 29. 2018- TOYOTA ALPHARD proximity(8A-A9) all keys lost(free pincode, smart key ECU with 24 pin)
• 30. 2018- TOYOTA VELLFIRE proximity(8A-A9) all keys lost(free pincode, smart key ECU with 24 pin)
• 31. Add backup smart key ECU IMMO data by OBD for below models (more models in testing):

TOYOTA ALPHARO
TOYOTA CAMRY
TOYOTA C-HR
TOYOTA CROWN
TOYOTA HIGHLANDER
TOYOTA IZOA
TOYOTA LAND CRUISER
TOYOTA LC200
TOYOTA PRADO
TOYOTA PRIUS
TOYOTA RAV4
TOYOTA VELLFIRE
LEXUS LC
LEXUS LC570
LEXUS RX series
LEXUS RX450H



Smart ecu plug has changed on the 2023.  (BA BA is the newest no support). On the plug itself only the power 12v changes.. terminal 3 is for Corolla only, and 4 is for RAV4, Avalon, 4runner, Highlander.





Example:

OBDSTAR Program Toyota RAV4 2021 8A Proximity Bypass PIN



3). Lonsdor K518ISE/K518S

Lonsdor ADP Adapter supports 90% Toyota Lexus (up to 2021) proximity smart key programming without PIN.

All keys lost requires LKE emulator as well.

• 8A: DST-AES 88 A8 A9 AA
• 4A: HITAG-AES
• Supports EU US ME Toyota all keys lost via OBD
• Free password to program dealer key & Lonsdor dedicated key

Lonsdor ADP Adapter Toyota Car List:

Toyota 8A

Camry/2013-2021

Highlander/2013-2021

Land Cruiser/2014-2021

Prado/2014-2021

Crown/2015-2021

Alphard/2015-2021

Vellfire/2015-2021

Previa/2015-2021

C-HR/2018-2021

lzon/2018-2021

Wildlander/2018-2021

Avalon HV/2019-2021

Rav4/2014-2021

Prius/2015-2021

Avalon/2019-2021

Corolla EX/2013-2019

Harrier/2021

Lexus 8A

UX series/2018-2021

RX series/2013-2021

NX series/2017-2021

LS series/2013-2021

Toyota 4A

Livin/2021

Allion/2021

Corolla/2019-

Corolla HV/2019-2021

Levin/2019-

Levin HV/2019-2021

IS series/2013-2021

GS series/2013-2021



*If the P04 Page ends with “BABA” or “3939”, Lonsdor will not do all keys lost, only add key.



Example:

Program Toyota RAV4 2021 All Keys Lost with Lonsdor K518 ADP Adapter

4). Launch X431

Launch X431 IMMO Plus/IMMO Elite IMMO Pro key programmers with x-prog3 will bypass these security codes as well.

Launch X431 also has bypass cables and smart key emulator for Toyota 8A/4A proximity all keys lost.

Launch X431 24-PIN bypass cable for 2019 onwards such as Highlander, Alphard, and Vellfire, equipped with TMLF12 smart box

Launch X431 27-pin bypass cable for 4A, 8A-A9, and 8A-AA smart keys all lost

Launch X431 emulator

Users can check vehicle coverage on Launch X431 official website or provide vehicle information to us to confirm.



Example:

Launch X431 IMMO Plus Toyota RAV4 2019-2021 AKL via OBD





5). Xtool

Xtool x100 pad3/pad elite will release the update for these 8A/4A models without code and works with OEM keys.







Buy Code Online

If you don’t have bypass adapters, you can buy code directly.



I. NASTF

Best bet is Techstream subscription with NASTF.

It’s the $65 security professional script. If you have a yearly subscription there is no cost. The yearly subscription costs $1,295.

You can purchase a 2 day subscription at a cost of 65 dollars. Then you have to wait for email ( up to half hours) then you can re-log back in to site and get 1 free key code. It’s much quicker to just pull out the drivers door lock cylinder and get the key code. It’s stamped right on it!

If bypass the seed code, there is no option for all keys lost or generate smart key, only add key, then add the key.

Once you have reset immo, you go back and add key.





II Facebook resource

some at facebook provides this service.

1). Groky Copbal, charges 11.99 USD per code via PayPal

2). Oumar Legzé

3). Claudia Yvett Reyez Montero

4). Ameer Hasan for this code, excellent service, always recommended.

5). Bobb Keil

6). John Wise Dallas

How to use Autel MaxiFlash with J2534 ToolBox2?

Q: Can you manage to install Drewtech j2534 Toolbox with a 3rd party J2534 device? I want to have this software for skim delete on jeeps.  I’ve maanged to get the software but it would not work with my j2534 devices ( GM MDI ,VAS 5054, FVDI J2534).



A: The J2534 TOOLBOX only works with the DREWTECH J2534 device.

Some people modified some registers in Windows and then works with 3rd party j2534 passthru. Here is the clue.



What is the use of this J2534 ToolBoX software?
A lot of people use it to remove/delete/disable skim module from older chryslers/jeeps.

1). Use Autel MaxiFlash VCI with J2534 Toolbox2

Set up it on a virtual machine.

Install Autel Maxi Flash suite from here
Install it
Install the j2534 tool box 2
Then import the reg edit (Autel registry patch download).

image attached



2). Use J2534 Toolbox with MDI or Autel

I managed to get it to work with an MDI and Autel interface.
With the modified REG files and snapon passthru pro2 drivers.

I can get it to work in a virtual machine, VMWare.
Install Toolbox 2
Install SnapOn Drivers for PassThru Pro 2
Install MDI Manager or Autel Software
Click the registry file mod.
Should all work. With MDI or Autel. Depending which REG file used.

Autel registry patch
MDI registry patch

3). Use AVDI with J2534 Toolbox.
registry using REGEDIT.exe in the PASSTHRU folder (same as AVDI passthru) so you can use the J2534 Toolbox
Just install AVDI pass-through drivers, and J2534 Toolsbox. Add registry mod and you are done.
Change the serial number from 123321 to your AVDI serial in two places.

Select Cardaq for login and password is the tool number.

This basically makes your AVDI simulate the CARDAQ PLUS.

NOTE: Need to find AVDI registry patch online.

Top 5 Airbag Reset Tools in 2023

 Are you looking for a solution for resetting airbag crash data from cars Volvo, VAG, BMW, Mercedes and etc? Is there a universal solution or different tools/software for each cars.

Can this be done via OBD or by connecting to airbag module direct?

Here obdii365.com list top airbag reset tools in year 2023.



What is an Airbag Reset Tool?

An airbag reset tool is a device or diagnostic tool used to reset or clear the airbag system’s fault codes and turn off the airbag warning light or SRS (Supplemental Restraint System) light in a car. When the airbag system detects an issue, such as a sensor malfunction or a deployed airbag, it triggers a fault code and illuminates the airbag warning light on the dashboard.

An airbag reset tool connects to the vehicle’s OBD-II (On-Board Diagnostic) port, which is usually located under the dashboard. It communicates with the car’s onboard computer system to retrieve and clear the fault codes related to the airbag system. By resetting the system, the tool allows the airbag warning light to be turned off after the underlying issue has been resolved.

Resetting the airbag system should only be done after identifying and fixing the cause of the fault codes. It is important to note that using an airbag reset tool does not fix any mechanical or electrical problems in the airbag system itself. It is merely a tool to reset the system and clear the fault codes after repairs or maintenance have been performed.





What is the Best Airbag Reset Tool?

There are many tools that cover airbag reset, such as obdstar, cg70, cg100, Carprog.



1). OBDSTAR P50

OBDSTAR P50 is the most cost-efficient SRS tool. OBDSTAR P50 is a universal airbag reset tool with wide coverage, it covers 51 brands and over 7100 ECU part numbers.

Function:

Read ECU Information: Read ECU part number, historical frame number, current frame number, and collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU

All by OBD or BENCH



Vehicle Coverage Supported Brands:

Acura	Chevrolet	Ford	Infiniti	Lincoln	Opel	Skoda	Toyota
Audi	Chrysler	GMC	Jaguar	Maserati	Peugeot	Smart	Volkswagen
Benz	Citroen	GreatWall	Jeep	Mazda	Porsche	Subaru	Volvo
Buick	Dacia	Honda	KIA	Mitsubishi,	Renault	Suzuki
Cadillac	Dodge	Hyundai	Land Rover	Nissan	Seat	Tesla

Over 7000 ECU part No. (supports fuzzy search)

MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570



Pros:

Standalone, don’t need PC

Supports more vehicle and airbag part numbers

Most can be done by OBD, if fails by OBD, do it on bench

Can do Tesla, Maserati etc high-end vehicle airbag reset

18 months free update, release update frequently

fuzzy search for ECU part number



Cons:

Read, erase DTC and clear crash data, cannot repair

Still need welding

Some wiring diagrams are inaccurate

English language only





2). CGDI CG70

CGDI CG70 airbag reset tool adopts the new technology of intelligent diagnosis, and clears the fault code with only one key. No need to open the cover, no welding wire, no need to disassemble the chip, just connect the pin port, this product can diagnose the airbag module information, clear the fault code, and make the vehicle perfectly revived.

Function:

Auto repair
Read DTC
Clear Crash
Read eeprom
Write EEPROM



Supported Vehicle Brands:

Buick, Chevrolet, Ford, Great Wall, Hyundai, Infiniti, Jaguar, Kia, Land Rover, Lincoln, Mazda, Nissan, Opel, Renault, Suzuki



Pros:

Software is simple, easy to check wiring diagram and easy to use

Smart search to quickly find the part number you need.

With jumper cables, no dismantling, no welding, and non-destructive repair.



Cons:

Less car brands and part numbers than P50

Require PC

Only 1 year update





3). CG100/CG100X

CG100 or CG100X is the universal programmer supports airbag reset, odometer correction and eeprom reading. It is good on airbag reset.



SRS Function:

Auto repair
Read DTC
Clear Crash
Read eeprom
Write EEPROM



Pros:

Provide wiring diagram and instructions

Frequently update online
It has built-in crash airbag reset tool for Geely… Dong Feng… Beiqi… Fengxing… Great Wall… And many other nice never seen cars in the west atmosphere.



Cons:

1 year free update, require software subscription later.

some need soldering

works online only, need to access server





4.) Carprog clone

carprog is a good start.
not all airbags can be cleared by obd, alot you have to hard wire to the ic inside to read and write.

carprog clone supported airbag brand list





5). iProg clone

iprog is a universal programmer for airbag, mileage and eeprom.

Tool is cheap. Iprog plus is a good starter, you have to know how to use it, but over time it does everything, it’s always good, you have more tools just in case. Sometimes I calculate them, you have to do it yourself.

The clones are better cause you have newer software versions which are not available for the original version. 90% of dashboard and airbag calculations are good.
