CG100X Change VAG MQB NEC35XX Mileage in 2 Ways

 CGDI CG100X adds VW MQB NEC35XX cluster mileage correction with self-contained algorithm.



Supported Cluster types:

D70F3524+95320, D70F3525 (A2C81589600), D70F3525+95320, D70F3526 (A2C81589700), D70F3526+95320, D70F3529 (A2C84582900), and D70F3532 (A2C81589500).





You can change MQB mileage in 2 ways:

1). Soldering way

2). with adapter





Way 1: By soldering

check the VAG NEC35XX pinouts here

CG100X VAG MQB Mileage Correction Pinout

Here takes a 2018 VW Passat as an example.

CG100X Change VAG MQB NEC35XX Mileage 1

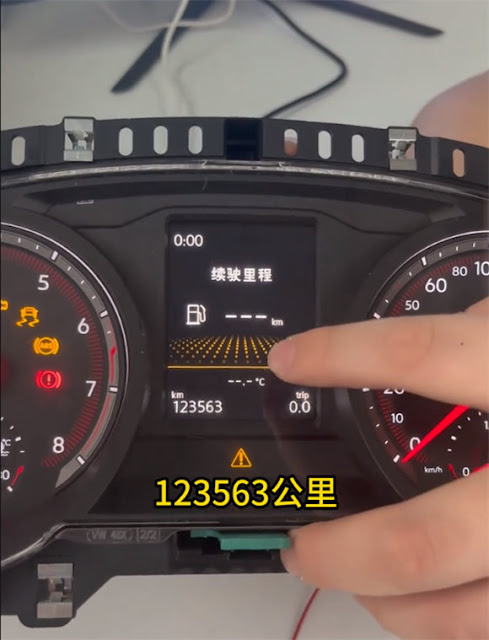

Original mileage: 123563 km

CG100X Change VAG MQB NEC35XX Mileage 2

The chip is BGA type, and it’s D70F3532.

CG100X Change VAG MQB NEC35XX Mileage 3

Run CG100X software

Select Dashboard>> European car>> Volkswagen D70F35xx>> MQB>> D70F3532 (A2C81589500)

Follow the wiring diagram to connect

Use the Pro Adaptation cable to connect the dashboard and CG100X host

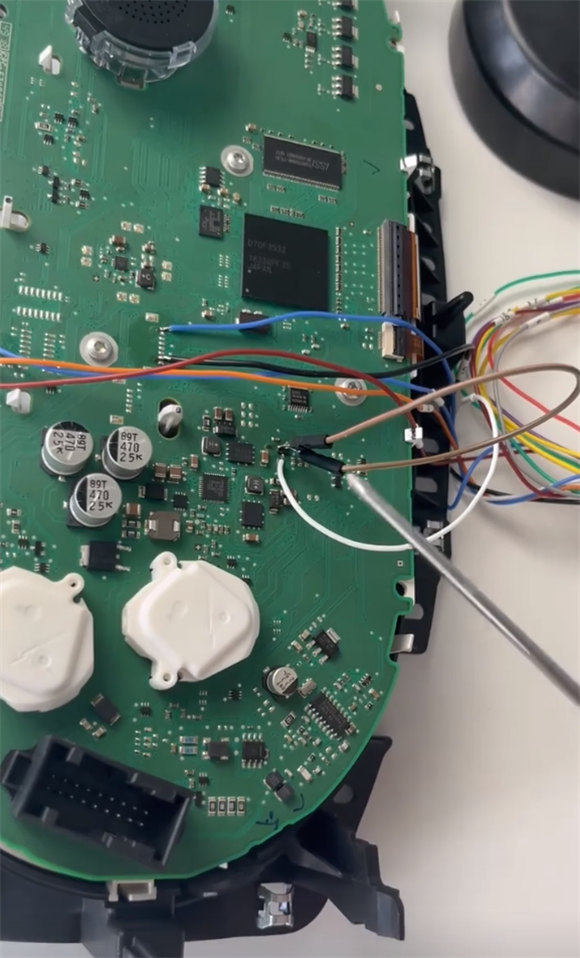

Short-circuit the two pins as shown in the figure below (no need to cut wire and lift pin)

CG100X Change VAG MQB NEC35XX Mileage 4


CG100X Change VAG MQB NEC35XX Mileage 5


Click “Start operation”

CG100X Change VAG MQB NEC35XX Mileage 6


Read and save the original data

CG100X Change VAG MQB NEC35XX Mileage 7

CG100X Change VAG MQB NEC35XX Mileage 8

CG100X will automatically analyze the mileage and modify.

The current KM is detected automatically.

Enter the new mileage value manually (i.e.53456), and click “OK”

CG100X Change VAG MQB NEC35XX Mileage 9

Modifying KM…

Writing….

CG100X Change VAG MQB NEC35XX Mileage 10

CG100X Change VAG MQB NEC35XX Mileage 11


The modification is completed.

There is no need to click “write”. Disconnect the Pro Adaptation cable and the two pins, and install the dashboard back on the vehicle.

Now the new KM on the dashboard is 53456 km, it’s the same as the value in the CG100X software.

CG100X Change VAG MQB NEC35XX Mileage 13





Way 2: By Adapter



CGDI CG100X has a built-in CAN driver and it can easily power on Volkswagen MQB D70F35xx instrument with 12V (ON) function. (It’s recommended to use the newest CG100X software)



Volkswagen MQB Power on interface diagram:

D70F3524+95320, D70F3525+95320, and D70F3526+95320 support the same connection diagram.

CG100X Change VAG MQB NEC35XX Mileage 14

D70F3525 (A2C81589600), D70F3526 (A2C81589700), D70F3529 (A2C84582900), and D70F3532 (A2C81589500) support  the same connection diagram.

CG100X Change VAG MQB NEC35XX Mileage 15

How to connect MQB NEC35XX Cluster with CG100X and Adapter?

Prepare the device and accessories below:

  • CG100X programmer main unit
  • 35X-CAN Adapter
  • CAN Cable
  • VW MQB D70F35xx dashboard

Follow the corresponding power on interface diagram to connect properly

Plug the CAN cable into the correct position of MQB dashboard

Connect CAN cable and 35X-CAN Adapter, and connect to CGDI CG100X

CG100X Change VAG MQB NEC35XX Mileage 16

CG100X Change VAG MQB NEC35XX Mileage 17

CG100X Change VAG MQB NEC35XX Mileage 18

Run CG100X software

Select Dashboard>> European car>> Volkswagen D70F35xx>> MQB>> the corresponding dashboard type supported

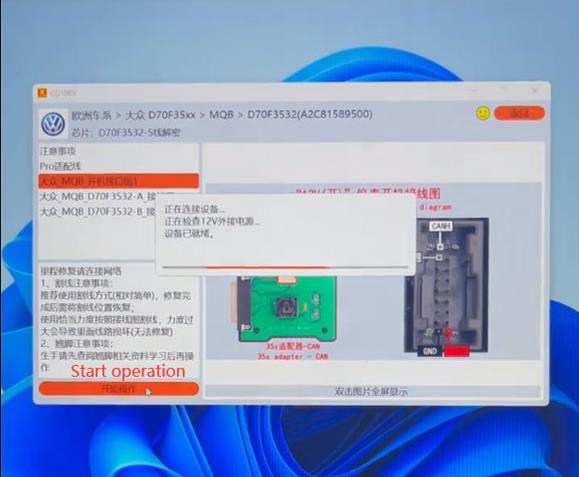

Click “Start operation”

CG100X Change VAG MQB NEC35XX Mileage 19

If the software appears “No response…” error, just click “OK” to continue.

CG100X Change VAG MQB NEC35XX Mileage 20

Then click “12V (OFF)” button, and it will light up, and shows “12V (ON)”.

CG100X Change VAG MQB NEC35XX Mileage 21

CG100X Change VAG MQB NEC35XX Mileage 22


In the meanwhile, the VW Logo appears on the dashboard and the startup sound also sounds normal.

CG100X Change VAG MQB NEC35XX Mileage 23

CG100X Change VAG MQB NEC35XX Mileage 24

Done.
