2019/06/12

How to install SVCI JLR DoIP SDD V157 on Windows 7?

STC SVCI DoIP is a new diagnostic passthru doe Jaguar and Land rover.  SVCI DoIP is compatible SDD & Pathfinder Diagnostic software for JLR from year 2005-2019.

What’s new of the STIC SVCI DoIP?
  • With latest software SDD 157
  • Software can be installed on Win7 Win8 and Win10
  • Support Online programming (provide online account)
connect-svci-doip-1
How to install SVCI DoIP JLR SDD V157 Software (i.e Windows 7)?
Step 1: Install setup
Open software CD
install-svci-doip-sdd-v157-1

Run SDD_157_FULL setup
install-svci-doip-sdd-v157-2

Select setup language
Press Next to install Wizard for SDD
Accept 2 license agreements
Accept firewall compatibility warning
Choose destination folder C:/
Choose all language pack and Press Next
If system prompts Adobe Reader is out of date message, press OK to continue
install-svci-doip-sdd-v157-3

Install the Program
install-svci-doip-sdd-v157-4

Press No if system ask you to enable ActiveCGM to be the default TIF viewer

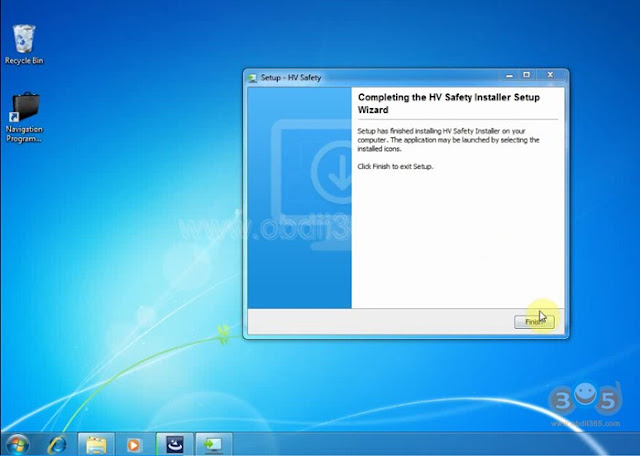

Install HV Safety Installer setup wizard until finish
install-svci-doip-sdd-v157-5
install-svci-doip-sdd-v157-6

Install MOXA UPort Windows Driver Setup Wizard
install-svci-doip-sdd-v157-7

Select destination location C:/Program Files/Moxa/USBDriver
Press Install
install-svci-doip-sdd-v157-8

Finish install MOXA Windows Driver
InstallShield Wizard Complete
install-svci-doip-sdd-v157-9

Restart computer
Step 2: Install SVCI DoIP Passthru driver
install-svci-doip-sdd-v157-10

Run SVCI DoIP D-PDU and Passthru Driver as Administrator
Select driver language
Select destination folder C:/Program Files/STIC
Press Next
install-svci-doip-sdd-v157-11

Choose Install USB drivers and install VS2012 Package
install-svci-doip-sdd-v157-12

Click on Install
install-svci-doip-sdd-v157-13

Finish installing SVCI passthru driver

Step 3: Make connection
Connect SVCI DoIP interface with laptop
install-svci-doip-sdd-v157-14

Windows will automatically install device driver
install-svci-doip-sdd-v157-15

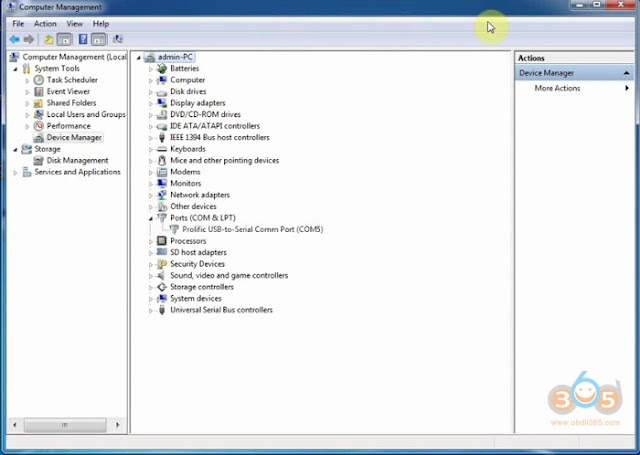

Go to Computer->Manger->Device Manger to make sure COM Port is set to COM5
The STIC-SVCI device is connected and ready for use.
Step 4: Run SDD
install-svci-doip-sdd-v157-16

Open JLR SDD software on desktop as Administrator
install-svci-doip-sdd-v157-17

Go to Dealer information and enter user info.

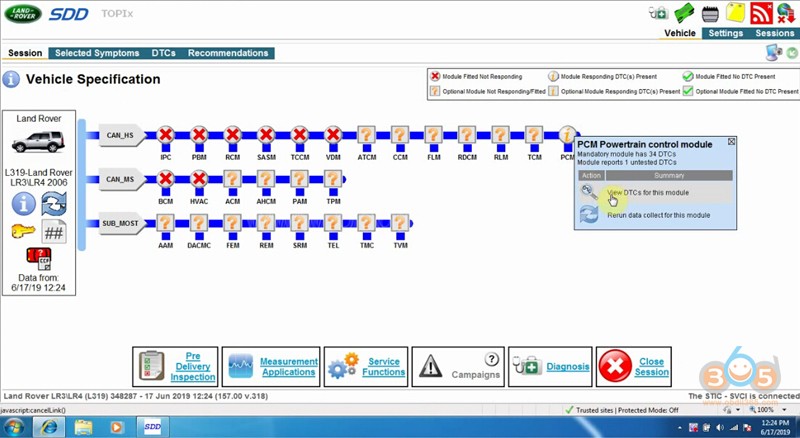

Here we test a 2006 Land rover L319
Auto read VIN
Choose instrument cluster
Start diagnose vehicle
install-svci-doip-sdd-v157-18

install-svci-doip-sdd-v157-19

install-svci-doip-sdd-v157-20

install-svci-doip-sdd-v157-21

install-svci-doip-sdd-v157-22

install-svci-doip-sdd-v157-23
