Yanhua Mini ACDP Read Volvo CEM KVM Data Without Soldering

To Program Volvo 5-button and 6-button smart key with Yanhua Mini ACDP, you have to read data from CEM and KVM module first. Then write key by uploading password data.

Volvo license is required.

ACDP Mini supports following Volvo key programming models:

Supports 5-button remote key add key and all keys lost
Supports 6-button smart key add key and all keys lost

Volvo S60 (2010-2018)
Volvo S80 (2009-2016)
Volvo XC60 (2009-2018)
Volvo V60 (2011-2017)
Volvo V70 (2009-2016)
Volvo XC70 (2010-2016)

Read Volvo KVM Data with ACDP Without Soldering

Remove the Volvo KVM module located on the tight side of the trunk

Disassemble the KVM module

Prepare ACDP host, OBP+ ICP adapter, KVM interface board and 20 pin cable

D1-D4 regional figual and picture of each test point location

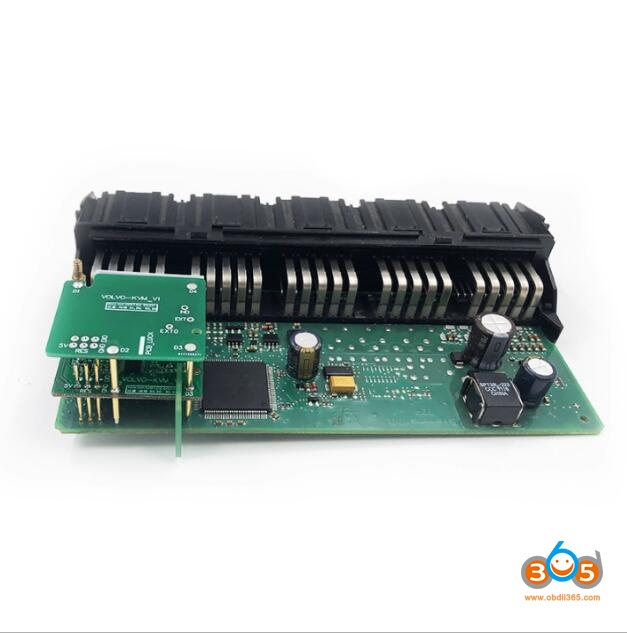

Install KVM interface board according to the registration point D1-D4

Connect the KVM module and ACDP programmer

Open Mini ACDP app

Select Volvo module
select model, i.e XC60 (2009-2018)->Full Keyless->Read KVM password

Check well connection is built

Detect PIN

Passed Pin detection. If not, clean the corresponding test point

Decrypting the chip

Confirm VIN information

Press OK to save KVM data

KVM data is backed up to default folder

Read Volvo CEM Data with Yanhua ACDP Without Soldering

Remove Volvo CEM module behind the co-pilot glove compartment

There are 2 types of CEM module

Volvo CEM Type 1:

Disassemble the CEM module and prepare the ACDP, OBP+ICP adapter, CEM interface board and 8-PIN cable

D1- D4 and each test point

Install the CEM interface board according to the location point D1-D4

Connect ACDP host and CEM interface board as picture above

Volvo CEM Type 2:

Disassemble the CEM module and prepare the ACDP, OBP+ICP adapter, CEM interface board and 8-PIN cable

D1-D4 and each test point

Install the CEM interface board according to the location point D1-D4

Connect ACDP device and CEM interface board

Open ACDP Mini App

Select Volvo module
select model, i.e XC60 (2009-2018)->Full Keyless->Read CEM password->Method 1: ICP Mode

Check connection

Detect PIN

Reading data

Check the VIN

Press OK to save CEM password data

CEM data was saved to default folder.

Then you can add keyless smart key by upload password data.

Done.
