How to: Update and activate Autek Ikey820 OBD car key programmer and pin code reader.
Autek iKey-820 Update:
1 What you need
1) AUTEK IKEY 820 key programmer
2) PC with Win10/Win8/Win7/XP
3) USB cable
1) AUTEK IKEY 820 key programmer
2) PC with Win10/Win8/Win7/XP
3) USB cable
2 Install update tool on your PC
If the update tool “AUTEK IKEY 820 Update Tool V1.2 is already installed on your PC before, just skip this chapter. If not, you need to install it.
If the update tool “AUTEK IKEY 820 Update Tool V1.2 is already installed on your PC before, just skip this chapter. If not, you need to install it.
Double click the setup file to start installing the update tool
Click “Next‟ until the finish window, and click finish button to end the install program. There will be a shortcut icon on the desktop, see Figure 2(a).
AUTEK IKEY 820 Update Tool contains three parts including UPDATE, ACTIVATE and MESSAGE from top to bottom.
AUTEK IKEY 820 Update Tool contains three parts including UPDATE, ACTIVATE and MESSAGE from top to bottom.
3 Update
Take the following steps to update AUTEK IKEY 820 device:
1) Connect device to PC through USB cable;
2) Open AUTEK IKEY 820 Update Tool in your PC that needs to be on internet;
3) Select the device in list and input the SN (usually completed automatically);
4) Click UPDATE button to start updating, wait until the updating completed.
Take the following steps to update AUTEK IKEY 820 device:
1) Connect device to PC through USB cable;
2) Open AUTEK IKEY 820 Update Tool in your PC that needs to be on internet;
3) Select the device in list and input the SN (usually completed automatically);
4) Click UPDATE button to start updating, wait until the updating completed.
There is something you need to notice in each step.
1) The device should display “USB SD DISK MODE” when connected to PC through USB cable, if not, please unplug the USB cable and plug again. Do not unplug the USB cable or exit from USB SD DISK MODE.
1) The device should display “USB SD DISK MODE” when connected to PC through USB cable, if not, please unplug the USB cable and plug again. Do not unplug the USB cable or exit from USB SD DISK MODE.
2) If AUTEK IKEY 820 Update Tool is not installed, please install it first, see detail in chapter 2.
3) The DISK and SN should display automatically if the device is connected to PC. If the DISK has no device to select, please unplug the USB cable and plug again. If the DISK has been selected, but SN is empty, please unplug the USB cable and plug again. If it‟s still the same, please input SN yourself. The SN should start with “A-”.
4) It may take several minutes to update, it depends on the speed of your internet.
If there is any problem, it will display on message area, check according to the message and try again.
Here are the pages for updating. The SN is just an example, you should use your own SN.
Autek iKey820 Activation
Activation means add tokens to your device. If your device runs out of tokens or you want to increase the number of tokens, you can use AUTEK IKEY820 Update Tool to increase tokens.
Take the following steps to activate AUTEK IKEY 820 device:
1) Supply power to the AUTEK IKEY 820 device through USB/12V DC adapter/OBD.
1) Supply power to the AUTEK IKEY 820 device through USB/12V DC adapter/OBD.
2) Go to the ACTIVATE menu, you will see a page with steps to activate your device and the REQ CODE which is need in AUTEK IKEY 820 Update Tool to get the ANS CODE.
3) Open AUTEK IKEY 820 Update Tool in your PC.
4) Input the REQ CODE to the AUTEK IKEY 820 Update Tool and click ACTIVATE button, then you will get the ANS CODE
5) Press OK button on the device and there display the page to input ANS CODE.
6) Input the ANS CODE you get in the AUTEK IKEY-820 Update Tool.

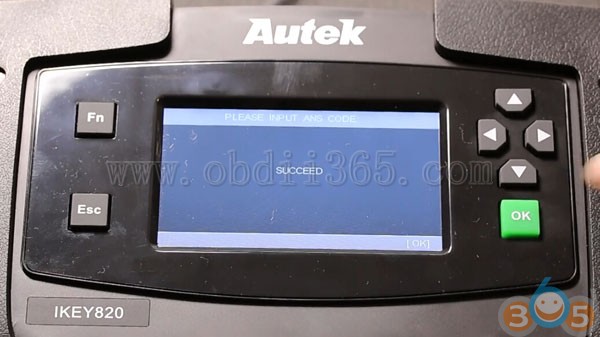

7) Press OK button and the page will show the result, SUCCESS or FAILED.
8) You can check your tokens in the ABOUT menu if you activate your device successfully.
All the SN, REQ CODE and ANS CODE are examples, just ignore them.
Update_and_Activate_Autek_Ikey820_Key_Programmer.pdf
