How to Read Renault Clio 4 HFM uPD70F3633 with Orange5

Problem:
hello I need a dump of my hfm renault clio 4 year 2014 HFM (Hands Free Module) module all keys lost.
I found a pinout but I do not know how to adapt it to my programmer orange 5  to read data on NEC processor v850 uPD70F3633.
thank you for helping me to realize the cabling.
hrm-x98
Solution:
Guide: read Renault Clio 4 HFM dump with Orange5 programmer

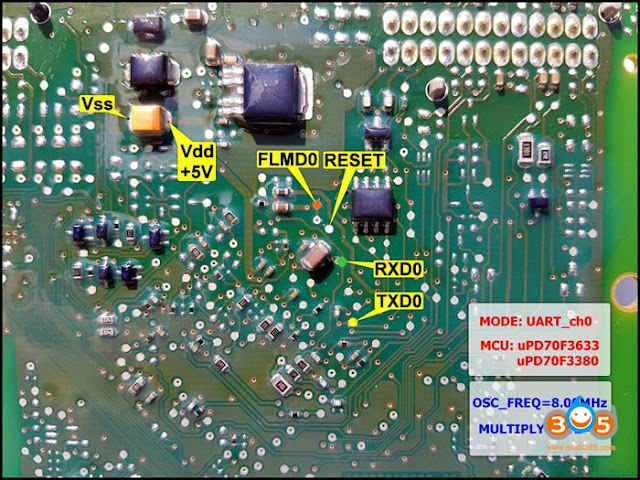

renault-hrm-pinout-orange5
Make a connection. No need lift pin. Connect wire 6.
ornage5-read-renault-clio4-hrm-1

ornage5-read-renault-clio4-hrm-2
Open Orange 5 software.  Device option: OSC 8000
ornage5-read-renault-clio4-hrm-3
Read MCU information
ornage5-read-renault-clio4-hrm-4
Read DATA uP70F3633
ornage5-read-renault-clio4-hrm-5
Save data
ornage5-read-renault-clio4-hrm-6
Read FLASH
ornage5-read-renault-clio4-hrm-7
Read success. Save Flash.
ornage5-read-renault-clio4-hrm-8
Note: You can read HRM dump with vvdi progxprog 5.84 or upa etc as well.

After save dump, you can proceed to add key card using Renault key programmer, i.e Renault ECU Tool (RET).
Connect your RET on OBD
Go clio IV
Load your dump in RET dump tab
Press Key programming
Then a tab opens to put the card and read key
Press assign card and follow RET prompts
Here’s photo guide
renault-ecu-tool-clio4
