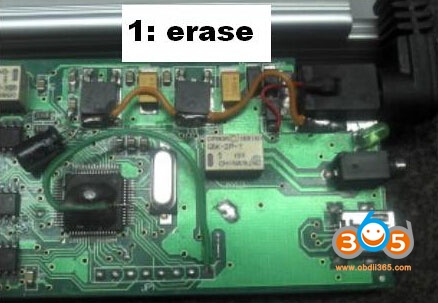

Now make the J-Link connection to Carprog programmer according to the scheme and with the least possible piece of wire that is important
We open the program to go to options / project settings and put it all as the pictures
now file / open data file and select our new firmware
finally we select target / connect / program.
Jlink interface pinout JTAG
J-link to carprog
J-link configuration
program j-link
Step 1:
jtag speed before/after in: auto selection
jtag scan chain information: auto detection
deleted info configuration: ARM7TDMI core ….
APPLY
Step 2:
device: atmel …..
check core id
APPLY
Step 3:
Enable target power
APPLY
Step 4:
Select Target – connect
Step 5:
Select File – open data file…
Step 6:
Select Target and go to Program
Done!
