How to Install V1.35 OEM Orange5 Plus Software Driver?

OEM Orange5 Plus clone with new software V1.35 is verified working.   V1.35 software adds more vehicle types comparing the older v1.34 version.

Software version: V1.35

Language: English, Chinese, Russian

Operating system: Windows XP, Windows 7, Windows 8

What’s New of Orange5 Plus V1.35?

orange5 v1.34 vs. v1.35

V1.34 supported chip type list

V1.35 supported chip type list

As you can see, the Plus 1.35 version adds some new authorizations for AIRBAG,CAR RADIO,IMMO PIN,CAR MILEAGE,MOTORBIKE MILEAGE and Mileage for MTRK etc…

– Adds one USB dongle (Easier to use, faster and safer)

– Update the software version: 1.35

– More functions: mileage programming, airbag service reset, read Renesas chip

For the specific car models, please feel free download below:

orange5-plus-dash-immo-update-list.pdf

v1.35-orange-5-plus-airbag-car-list

1-35-orange-5-Read_Write_SRS_MCU_CAN_eng

Software License List:

MTRK
TMS
M08V
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3  UART

Orange5 V1.35 new added ECU chip list

Software License List:

MTRK
TMS
M08V
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3  UART

V1.35 orange5 software free download

https://share.weiyun.com/rJcr6GdV

Password: pmyy6g

Works with new Orange5 Plus hardware (Item No. SE125-C ONLY !!!)

Hardware PCB display

How to install Orange5 Plus v1.35 Software Driver?

– Installation: driver needs to be installed first, then run software directly.

Open software CD

Copy and paste Orange5_1.35 folder in CD to C://

Connect the Orange 5 Plus programmer with computer via USB cable

Go to Device Manager->Other Devices->Orange5 USB, right click to Update Driver Software

Search automatically for updated driver software

Save driver software to C://Orange5_1.35/Driver and press Next
Choose Install this driver software anyway

Windows has successfully updated driver software
Software is ready to use

Run English_orange software in C://Orange5_1.35

Select Options->Hardware->Test, run a hardware test

Self-test ok

Go to Help tab->System info->check hardware, S/N and license information

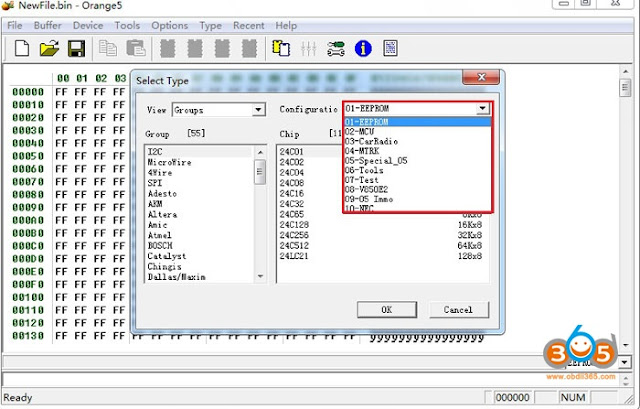

Now select chip type to read and write.
