Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox

 Yanhua Mini ACDP released new module 26 Ford 6-speed dual-clutch gearbox clone for Ford Focus, Ecosport, Fiesta, Aspire, Figo etc. The special interface board connection method replaces the traditional wire plugging method so that wires are NOT plugged to the wrong direction and place. This special interface board connection method is simple and efficient, plug and play, safe and reliable.





How to Clone Ford DPS6 Gearbox TCU with Yanhua ACDP Module 26?
ACDP app will show you connection diagram

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 1

Follow diagram to connect ACDP, Module 26 interface board and gearbox

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 2


Run ACDP App, select Ford- Gearbox Clone- DPS6

Step 1: Check connection

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 3

connect ACDP with the gearbox
Detect TCU serial and hardware number and system information
Auto backup information

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 4

Select Step 2: Read and Write Data-> Full Backup Data
Read and save chip data

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 5

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 6

Back to Step 3: Disconnect
Disconnect TCU with ACDP

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 7

Connect the new DPS6 gearbox TCU and prepare to write the original data
Go to step 1 and check Connection as well

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 8

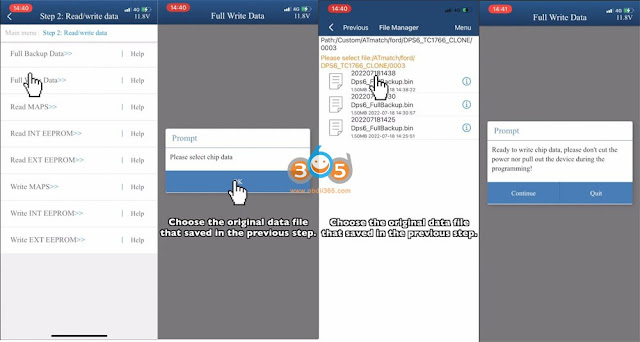

Go to Step 2: Read/Write data-> Full Write Data
Select chip data you saved in the previous step

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 9

Ready to write chip data, don’t cut the power nor pull out the device during the programming
Write chip data succeed
Save new data

Yanhua Mini ACDP Clone Ford 6 Speed DPS Gearbox 10
Again perform Step 3 Disconnect
Ford DPS6 gearbox TCU cloning with Yanhua ACDP is completed.
