KT200 Read and Write Ford Transit SID211

 Ford Transit SID211 Full flash read/Write with KT200 via OBD, only full flash possible OBD, EEPROM+Flash needs BDM.

If you prefer to have a spare eeprom if anything went wrong, make a backup by boot mode, then write the file modified by obd. All uploaded by OBD successfully.

Example:



To read eeprom+ flash, follow boot mode instructions below:

SIEMENS CONTINENTAL SID211 [ TC1791 INT.F.] – Ford

PASSWORD SEARCH
The password of this ECU is found at the end of reading the file using the serial driver via the OBD plug of the vehicle.
An example of serial driver for this ECU:
→ CAR
→ FORD
→ TRANSIT FT
→ 2.0 TDCI 105CV CONTINENTAL SID211 *CAN
At the end of the reading, therefore, the KT200 software saves the password in a file called Password_adv.bin in the same folder chosen for saving the file of the car.
To read and write in boot mode the ECU, copy this file in the folder where the program is installed.



READ AND WRITE ECU

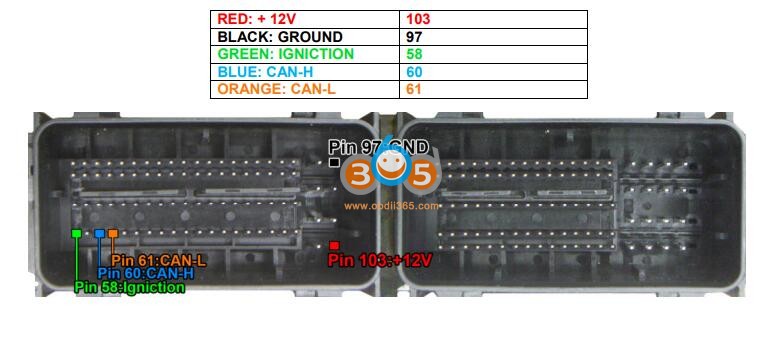

Connect with the multifunction cable the following pinout and the boot shown below
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1791
