Yanhua ACDP Read BMW MSV80 MSV90 via OBD or Bench Mode

 There are three ways to read BMW MSV80 MSV90 MSD85 MSD81 MSD80 etc DME ISN with Yanhua Mini ACDP,

Open DME shell to read ISN

OBD/CAN mode

Bench mode





Way 1: Open DME shell to read ISN

The traditional method requires ACDP host + module 3.

Menu path:

BMW->DME ISN->Open shell to read ISN->E or F series

yanhua mini acdp Open DME shell to read ISN 1

yanhua mini acdp Open DME shell to read ISN 2

yanhua mini acdp Open DME shell to read ISN 3

yanhua mini acdp Open DME shell to read ISN 4

yanhua mini acdp Open DME shell to read ISN 5

ACDP will show you instructions and connection diagram, i.e MSV80

yanhua mini acdp Open DME shell to read ISN 6

yanhua mini acdp Open DME shell to read ISN 7

yanhua mini acdp Open DME shell to read ISN 8

yanhua mini acdp Open DME shell to read ISN 9

yanhua mini acdp Open DME shell to read ISN 10

yanhua mini acdp Open DME shell to read ISN 11

yanhua mini acdp Open DME shell to read ISN 12

yanhua mini acdp Open DME shell to read ISN 13

yanhua mini acdp Open DME shell to read ISN 14

*MSV90 can be read by OBD and Bench mode only.





Way 2: OBD CAN Mode

You will need ACDP host + module 3+ interface board

ACDP released different interface board for different DMEs, check https://www.obdii365.com/producttags/acdp-interface-board.html

Menu path:

DME ISN->OBD/CAN Mode Read/Write ISN->Read MSV80/MSV801 DME ISN

yanhua mini acdp obd can mode read ISN 1

yanhua mini acdp obd can mode read ISN 2

yanhua mini acdp obd can mode read ISN 3

yanhua mini acdp obd can mode read ISN 4

ACDP will show instructions and connection diagram as well, i.e MSV80

yanhua mini acdp obd can mode read ISN 5

yanhua mini acdp obd can mode read ISN 6

yanhua mini acdp obd can mode read ISN 7

yanhua mini acdp obd can mode read ISN 8



Way 3: Bench mode

You will need ACDP host+ module 27 (module 27 comes with interface board and license A51E)

Menu path:

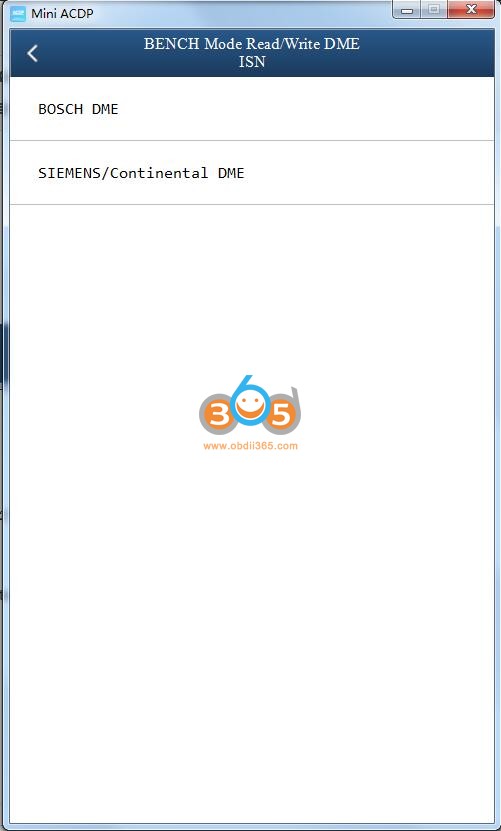

DME ISN->Bench Mode Read/Write ISN->Read MSV80/MSV801 DME ISN

yanhua mini acdp bench mode read ISN 1

yanhua mini acdp bench mode read ISN 2

yanhua mini acdp bench mode read ISN 3

yanhua mini acdp bench mode read ISN 4

yanhua mini acdp bench mode read ISN 5

yanhua mini acdp bench mode read ISN 6

ACDP will show instructions and connection diagrams

yanhua mini acdp bench mode read ISN 7





Module 3 vs Module 27

With module 3, you cannot clone MSV80 etc, only replace it.

With module 27, you are able to clone MSV80 etc.

Possible to Clone MSV80 DME with Yanhua Mini ACDP?



One of Yanhua ACDP users was trying to read BMW MSV80 DME ISN with module 3 and interface board but failed. ACDP Mini says the device does not obtain authorization of A51E module.

yanhua mini acdp a52e license

Here is the solution:

If read by OBD/CAN mode (module 3), ACDP will not ask for A51E license.

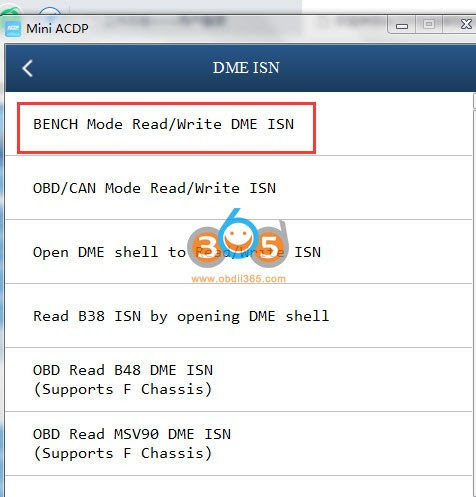

If you select bench mode to read/write MSV80 ISN, A51E license is required.

A51E license is for ACDP Mini module 27.  Module 7 uses special interface boards to read ISN on bench mode.

yanhua mini acdp module 27
