KT200 PSA DCM7.1A DCM7.1B Boot Pinout

 KT200 read and write PSA Peugeot Citroen DCM7.1A/B in boot without problem. But it is EXTREMELY difficult.



NEW BOOT MODE FOR DELPHI ECU DCM7.1A / DCM7.1B

BOOT MODE for micro AURIX TC297 mounted on DCM7.1A and DCM7.1B control units of the PSA group.

Reading and writing
Recovery and checksum available

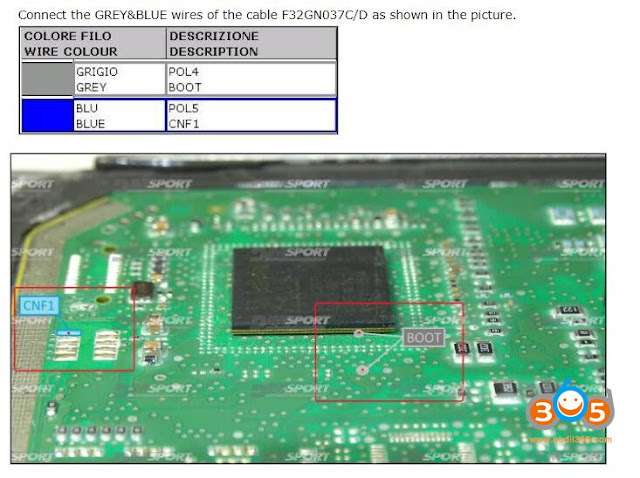

DIRECT BOOT & CNF1 CONNECTION
One of the BOOT pins is placed under the microprocessor

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 1

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 2

WARNING: we recommend using and tilting a metal support rod with a needle to reach the BOOT pin located under the microprocessor.

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 3

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 4

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 5

with the right tweezers it’s done on its own. just need good eyes / magnifying glass

this cnf1 for kt200

KT200 PSA DCM7.1A DCM7.1B Boot Pinout 6

also power/gnd/canH/CanL on ecu pins
