How to Add Audi Q7 MLB Smart Key by KYDZ MLB Tool?

 Here is the instruction to generate Audi Q7 MLB smart key using the new KYDZ MLB Tool.



Procedure:

Remove the circuit board from the original MLB key
Weld chip to this MLB key tool board

Then connect device with laptop
Run KYDZ MLB Tool software
Press Calculate data, this process takes about 5 mins

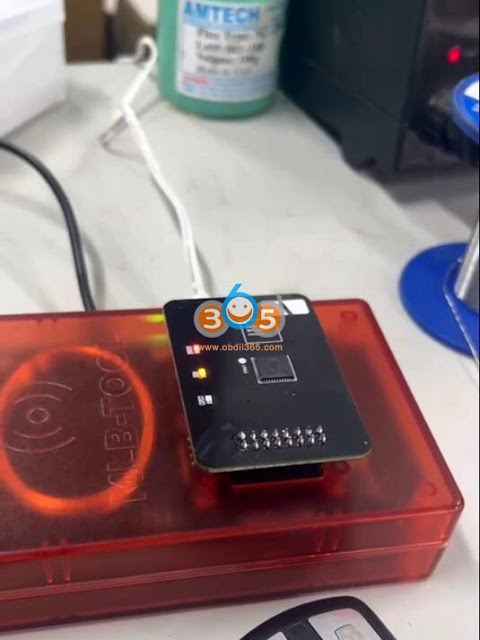

The indicator light on the MLB tool will flash when reading data

This is the key ID

Calculate data finished. Start to upload data to server.

The indicator light on the MLB indicator also flashes when uploading data.
Upload data completed. Start to calculate password. This procedure takes about 4 min.

You will see service number. Record the service number. VERY IMPORTANT!!!

If software shows this, just press Read password to continue.

Wait for the MLB tool indicators go out. CS code is calculated and saved.

Then put a new key on the KYDZ MLB programmer

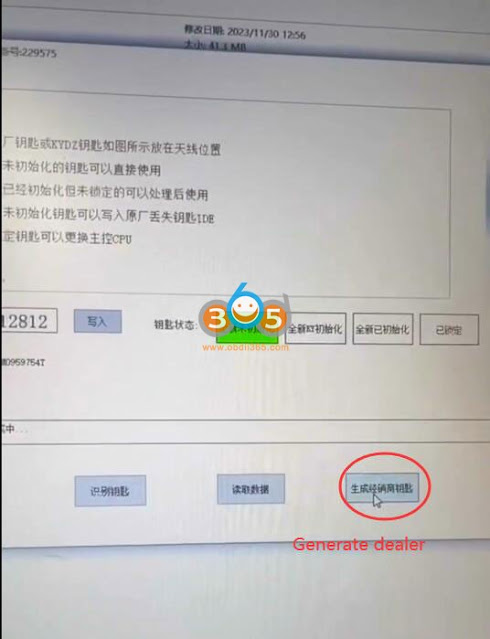

Press Generate dealer key->Identify key

It will show key ID. This is a brand new Uninitialized key.

If lost one original car key, only 1 left, you can write the lost key ID number here.
(only the original key with IDE: FF can be modified.)

Now we don’t need it. We have both original keys.
Generate dealer key directly.
So generate dealer key successfully.

Remove chip from MLB tool board and install it back to the original key PCB. Then install PCB back to shell.

Now you can program new key with other progrmamers (i.e Lonsdor K518 Pro).
