How to Connect Autel Tesla Diagnostic Cables?

 Autel released diagnostic cables for Tesla S and X vehicle models which enable Autel MaxiSYS MS909, MS919, or 908SPro, Elite, Elite II, and MS Ultra tablets to connect with Tesla S and X vehicles to activate factory mode and perform system diagnostics.



Autel Tesla cable set including:

Adapter Cable	Image	Supported Model	Model Year	Connection Port	Connection Port Location	Function
TLAN001		ModelS/ Model X	All	X861	On the back of the instrument cluster	Activate Factory Mode
			After Sept 2015	X863	Below the central control screen	Perform Diagnoses For LAN Related Systems
			Before Sept 2015		On the left side of the Instrument Cluster
TCAN001			After Sept 2015	X437	Below the central control screen	Perform Diagnoses For CAN Related Systems
TCAN002			Before Sept 2015

Location of X861, X863, and X437





How to Connect Autel Tesla TLAN001 Cable?

Required Tools (not included)

Preparation before Disassembly

*Ensure power is off before vehicle’s disassembly

1.Tap the lower-left corner of the central control screen in the following sequence: vehicle icon>> Safety & Security>>POWER OFF

2.Disconnect the negative cable of the 12V battery at the front compartment

3.Disconnect the first responder loop on the right side of the 12V auxiliary battery

Disassembly Steps

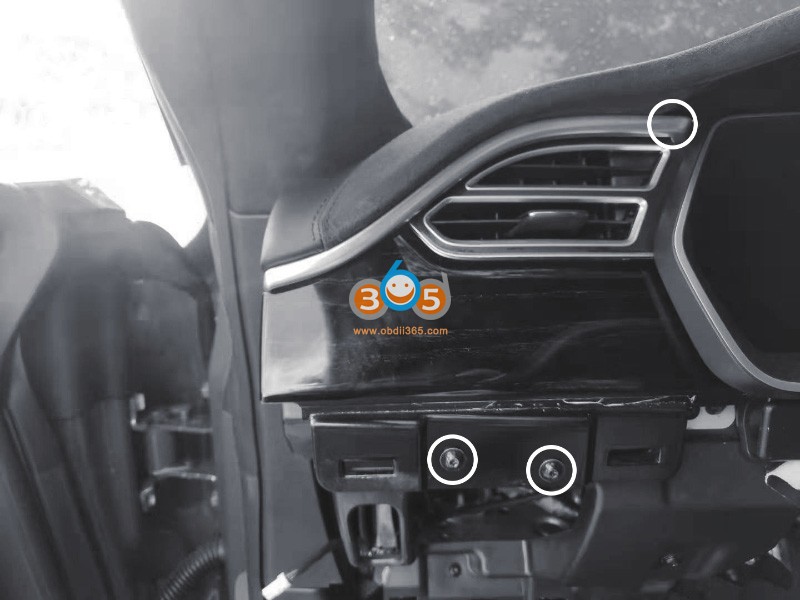

1.Remove the side cover of the instrument panel from the vehicle, and then remove the screws behind the side cover.

2.Remove the lower dash trim from the vehicle.

3.Remove the gasket on the top of the instrument cluster.

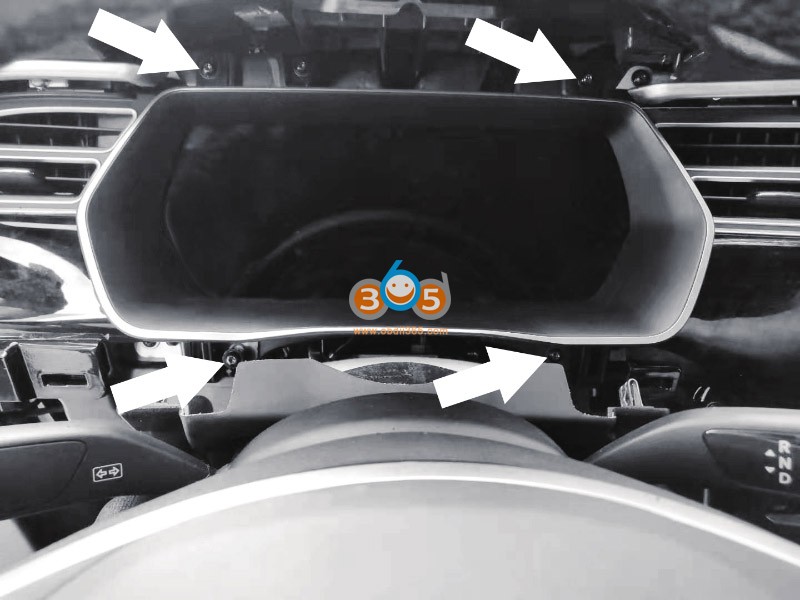

4.Remove the fixing screws (2 pcs) between the top pad and the instrument panel carrier (torque 1.2 Nm).

5.Release the fixing clips (2 pcs) between the steering column cover and the instrument cluster frame.

6.Remove the instrument cluster frame from the vehicle.

7.Remove both the outer face-level vent and the inner face-level vent from the vehicle dash.

8.Remove the instrument cluster from the instrument panel carrier to check the harness connection.

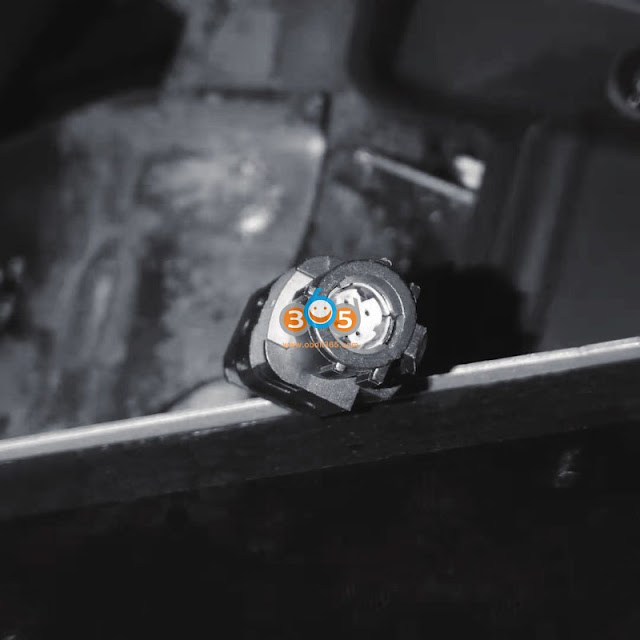

9.Disconnect the x861 from the backside of the instrument cluster.

10.Connect the diagnostic cable TLAN001 to the instrument cluster connector X861.
