 VNCI RNM is a Nissan, Renault and Mitsubishi 3 in 1 diagnostic scanner. The RNM device can do diagnostic, module programming and immo funcitons. Here is an example of 2020 Nissan TEANA module programming with the RNM device & Nissan Consult III Plus software without subscription.



Get the Nissan conult3 plus software installed.

Connect VNCI RNM with vehicle via USB.

Run VNCI Device Manager, check if device is well connected and also keep firmware up-to-date.

VNCI RNM Program 2020 Nissan TEANA ABS Module 1

Run VCI Manager and connect VCI

VNCI RNM Program 2020 Nissan TEANA ABS Module 2

Run Nissan C3P+ software

Go to Vehicle Selection
Sleect Altima/Tenana L34 2020
Confirm vehicle information

VNCI RNM Program 2020 Nissan TEANA ABS Module 3

VNCI RNM Program 2020 Nissan TEANA ABS Module 4
Select Other operation
Select ABS system
Select Program black ECU after ECU Replacement

VNCI RNM Program 2020 Nissan TEANA ABS Module 5



VNCI RNM Program 2020 Nissan TEANA ABS Module 6

Manual selection

VNCI RNM Program 2020 Nissan TEANA ABS Module 7

VNCI RNM Program 2020 Nissan TEANA ABS Module 8
Read programming instructions and conform, press Next to continue

VNCI RNM Program 2020 Nissan TEANA ABS Module 9
Select ECU part number
Confirm vehicle info again

VNCI RNM Program 2020 Nissan TEANA ABS Module 10

VNCI RNM Program 2020 Nissan TEANA ABS Module 11

VNCI RNM Program 2020 Nissan TEANA ABS Module 12

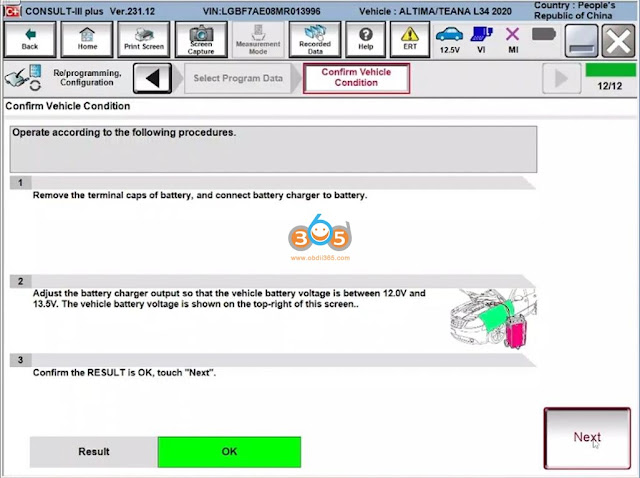

Remove the terminal caps of battery and connect battery charger to battery.
Adjust the battery charger output between 12V and 13.5V.

Press Start to start programming


VNCI RNM Program 2020 Nissan TEANA ABS Module 4 13

VNCI RNM Program 2020 Nissan TEANA ABS Module 14

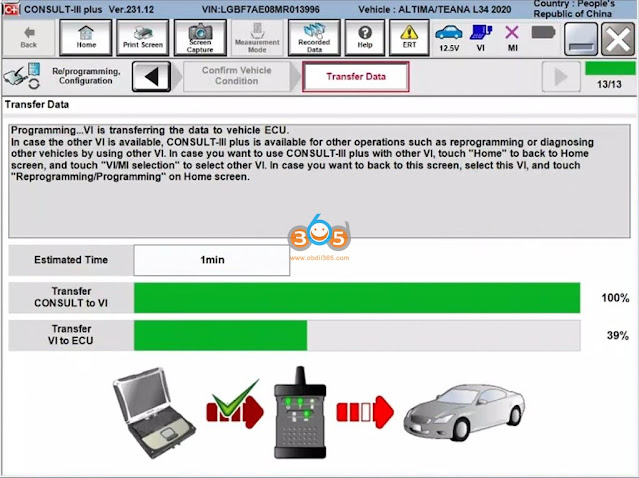

Program ABS module in progress

VNCI RNM Program 2020 Nissan TEANA ABS Module 15

VNCI RNM Program 2020 Nissan TEANA ABS Module 16

Programming is completed.

VNCI RNM Program 2020 Nissan TEANA ABS Module 17

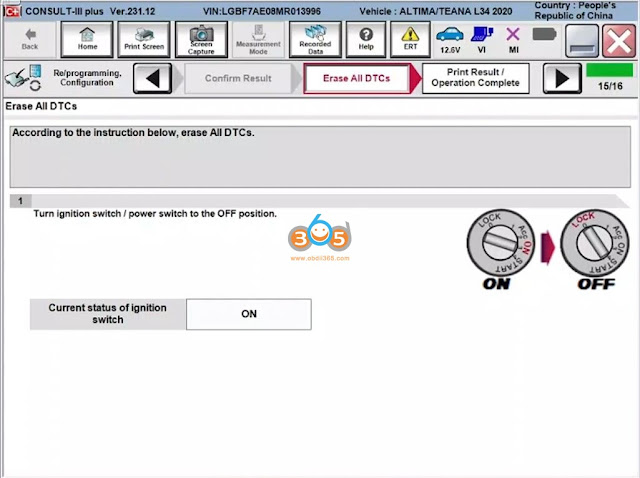

Turn ignition switch to OFF position
Then turn ignition switch to ON position, all DTCs are automatically erased.

VNCI RNM Program 2020 Nissan TEANA ABS Module 18

VNCI RNM Program 2020 Nissan TEANA ABS Module 19

VNCI RNM Program 2020 Nissan TEANA ABS Module 20

Video reference:

FYI:

You need to activate Immobilizer menu in order to program Immo keys with VNCI RNM scanner.
Follow installation guide and replace a patch file to set up software and activate programming menu.
