VAG ABS Long Coding with Autel and Launch X431

 When fault code 01130 shows when reading the OBD-II codes in a car manufactured by the VAG group, this will likely indicate a fault in the ABS system. We can do the coding using Autel or Launch X431 diagnostic scanners.



Here are the examples.

  1. With Autel scanners

It is a Volkswagen Polo 2010. The car arrived with a fault code in the ABS U101300the control unit is not coded.

We can do the coding via Autel MaxiSys Ultra/MS909/MS919 diagnostic scanners.

First, check the coding of the unit, the coding has a value of 000000000000…, which means that there is no coding.

VAG ABS Long Coding with Autel 1

AUTEL has the ability to download a suitable coding from the server and there is no need to select it for a long time and painfully.

The order is as follows:

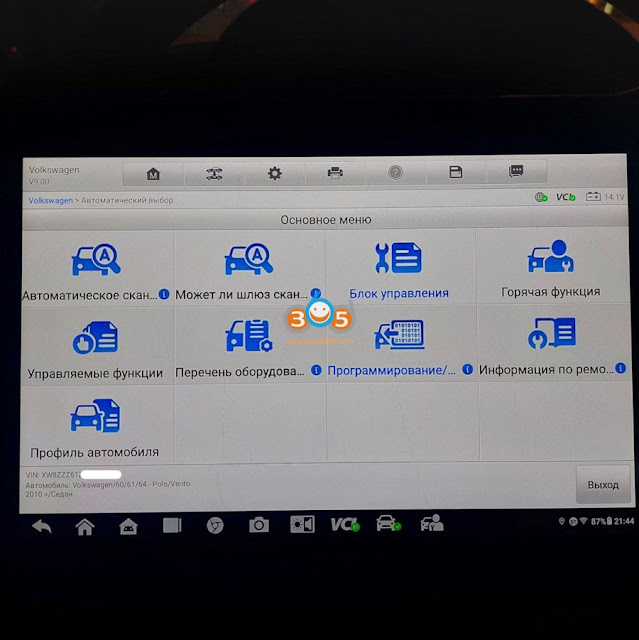

— through the Module programming function, download a suitable long coding
— select from the list, press Coding
— turn off and turn on the ignition
— check, if the error has not gone away or others have appeared, then select another coding

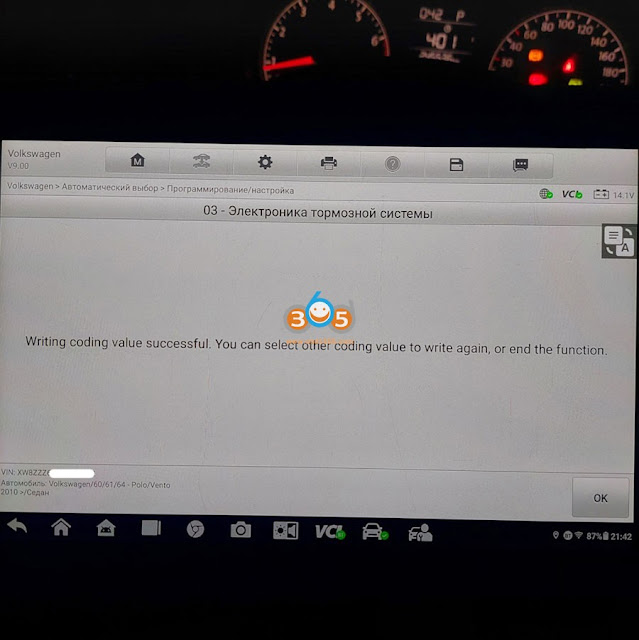

— now the unit is coded and you can delete the error.

Images attached


VAG ABS Long Coding with Autel 2

VAG ABS Long Coding with Autel 3

VAG ABS Long Coding with Autel  4

VAG ABS Long Coding with Autel 5

VAG ABS Long Coding with Autel 6

VAG ABS Long Coding with Autel 7

VAG ABS Long Coding with Autel 8

VAG ABS Long Coding with Autel 9

2. With Launch X431

Launch X431 scanners will also do ABS long coding for VAG cars.

Fits Launch X431 Pro5/PAD V/PAD VII/PAD 9 series scanners.

For example, it is Skoda 2014.

VAG ABS Long Coding with launch x431 1

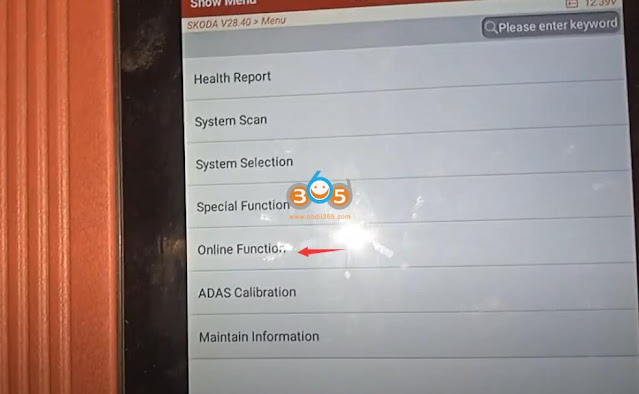

Go to Online Function->Online Coding-> Single System Mode-> select 03 Brake Electronics
Download coding files
Select possible coding and press OK to do coding.

The coding has been successfully carried out.

The erase fault code.

VAG ABS Long Coding with launch x431 2

VAG ABS Long Coding with launch x431 3

VAG ABS Long Coding with launch x431 4

VAG ABS Long Coding with launch x431 5

VAG ABS Long Coding with launch x431 6

VAG ABS Long Coding with launch x431 7

VAG ABS Long Coding with launch x431 8

VAG ABS Long Coding with launch x431 9

VAG ABS Long Coding with launch x431 10
