 This is an old Bentley, a flood car. Here we will show how to get this immobilizer clone so that we can finally start it up.

The KESSY Module out of a Bentley. The drowned one needs to be cloned. The cloning is for KESSY.

We have the original drowned one and another KESSY module from junkyard.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 1

Here shows how to clone the KESSY module using Xhorse Multi Prog programmer.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 2

Run Multiprog software, select VW-KESSY Backup read & write (2008-) (WLED)

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 3

Check wiring diagram.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 4

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 5

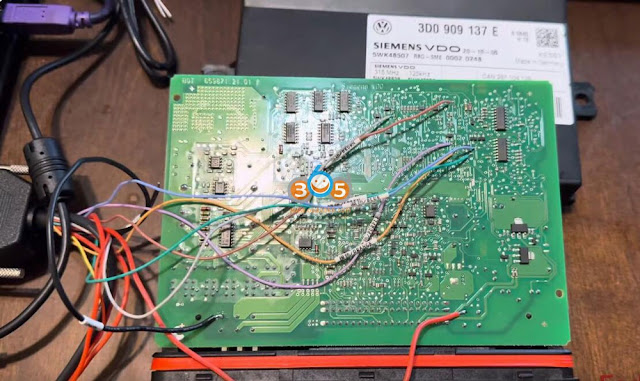

Make a strong zoom-in, every point must be welded on it.

Make sure everything is connected to the wiring diagram.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 6
Read eeprom data.
Verify data.

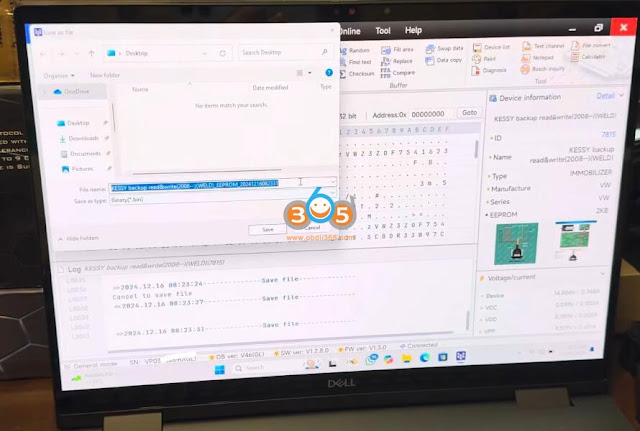

and save original KESSY eeprom file.


Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 7

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 8

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 9

Disconnect wires on the original KESSY module.

This is a donor KESSY module.
Connect junkyard KESSY module with xhorse multi prog and mcu adapter following the same wiring diagrm.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 10

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 11

Backup the eeprom of the donor KESSY module.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 12

Open original KESSY data and write to the junkyard module.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 13

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 14

Write original backup data successfully.

Read KESSY module data again.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 15

Make a comparison between the new KESSY data and original KESSY data.

The two files being compared are the same.

Xhorse Multi Prog Clone VW Bentley Siemens VDO KESSY Module 16

So the KESSY module is cloned by xhorse multi prog successfully.
