Yanhua Mini ACDP2/ACDP released a new module 37 for Mercedes Benz HU6 Instrument Module (C177) Mileage Correction.
Module functions:
Support mileage correction for the MB HU6 instrument module (A167/A213/A247) with chip model R7F701403.
Supported vehicle models:
Support for Mercedes-Benz W247 A/B/CLA/GLA/GLB after 2019
Support for Mercedes-Benz W177 CLA/GLA after 2019
Support for Mercedes-Benz W167 GLE/GLS after 2019
Support for Mercedes-Benz W213 E/CLS after 2020
Support for Mercedes-Benz H243 EQA and X243 EQB after 2021
How to use the Yanhua ACDP Module 37 for Benz HU6 cluster mileage correction?
Connection Diagram

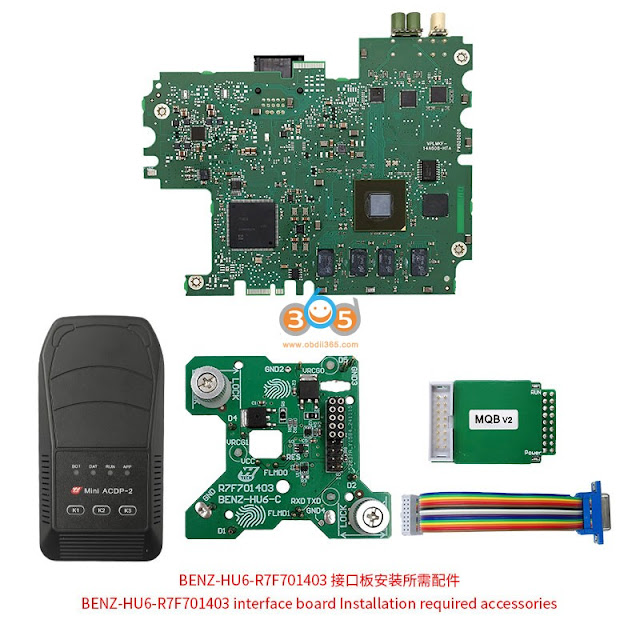

1. Required accessories
2. Based on the probe of the interface board, determine the installation area of the interface board on the instrument.
3. Find the correct positioning holes of D1-D5 on the insrument
4.Test point pin definition
5. Align the interface board probe with the probe hole on the odometer
6. Press down on the interface board, push the PCB lock buckle to the Locked position to lock the interface board, installation is done.
7. Overall connection diagram
Menu path:
Benz- >HU6 ODO Module (IC177) mileage correction-> R7F701403
Follow the steps to correct mileage:
1.OBD Identify
2. OBD+ ICP Reset Mileage
Select Original module reset mileage
Step 1: OBD backup data
Step 2: ICP Modify Data
Step 3: OBD Modify KM
