2022/08/22

KT200 ECU Programmer Test Report

 What would you say this KTM200/KT200 ecu programmer over any other ecu tools?  Here the success and failure report from KT200 users.

Software version is V22.08.20. Works only with KT200 interface connected. If the hardware is not connected the software does not start. Win7 and Win 10 32bit and 64bit work great.
It’s one of the best clone around.
kt200 ecu programmer pcb 1

kt200 ecu programmer pcb 2

Same protocols as Dfox.  About VR, it doesn’t work without user intervention the user must get the file from somewhere else such as Ecuhelp (SW received together with ECUtuner) PCM Tuner, and so on.

MD1, MG1, DCM 6.2a, PCR 2.1 OBD unlock, EDC16, EDC17, ME9, BDM, Boot all tested working.

PCR 2.1 OBD Unlock OK
kt200 PCR 2.1 OBD Unlock OK 1

kt200 PCR 2.1 OBD Unlock OK 2

kt200 PCR 2.1 OBD Unlock OK 3

kt200 PCR 2.1 OBD Unlock OK 4

kt200 PCR 2.1 OBD Unlock OK 5

kt200 PCR 2.1 OBD Unlock OK 6


MD1/MG1 Yes
Here is an example:

EDC16 Yes everything works perfectly also the checksum.
KT200 EDC16 bench full backup- Fiat EDC16C39 MPC561/2 FCA
kt200 fiat edc16c39 1

kt200 fiat edc16c39 2

kt200 fiat edc16c39 3


BMW EDC16C35/CP35 MPC563/4
kt200 edc16c35 1

kt200 edc16c35 2

BMW EDC16C1 MPC555/6 full backup on bench ok

EDC17 Yes everything works perfectly also the checksum.
VAG EDC17CP14 TC1796 on bench ok
kt200 VAG EDC17CP14 1

kt200 VAG EDC17CP14 2

kt200 VAG EDC17CP14 3


Audi EDC17CP24 TC1796 on bench ok
kt200  Audi EDC17CP24
Honda EDC17CP58 on bench ok

MED9 OK

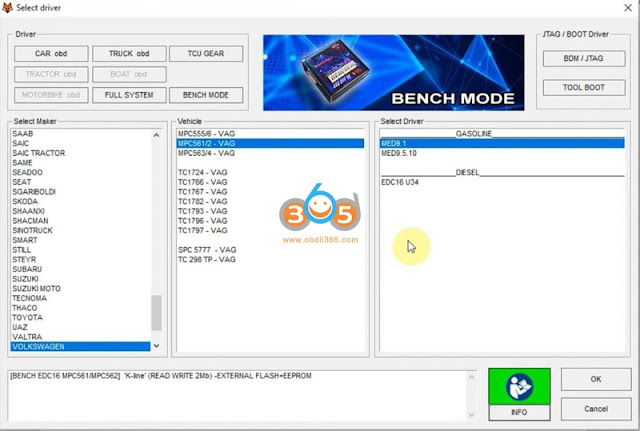

Audi MED9.1 MPC561/2 on bench read very fast

kt200 Audi MED9.1  1

kt200 Audi MED9.1  2

kt200 Audi MED9.1  3

kt200 Audi MED9.1  4

Internal Flash Boot
read ecu Infineon SAK TC1738 ok
Read Infineon SAK TC1796 ok, the reading takes only 4 minutes and writing under a minute.
kt200 Read Infineon SAK TC1796

Hummer Delphi delco p01 hummer h2 6.0 v8 ok
kt200 Hummer Delphi delco p01 hummer h2 6.0 v8 ok 1

kt200 Hummer Delphi delco p01 hummer h2 6.0 v8 ok 2

kt200 Hummer Delphi delco p01 hummer h2 6.0 v8 ok 3

SID206 read ok, but took 38 minutes in boot mode. Apart from this everything works well.
kt200 SID206 read ok 1

kt200 SID206 read ok 2


Keep updating success and failure results.

Final conclusion:
KT200 is pure dfox and works very well, study the list and see if it covers your requirements.
