2022/09/27

KT200 Read and Write Volvo TRW EMS 2.2 on Bench

 KT200 full version ecu programmer read and write Volvo Renault TRW EMS 2.2 and 2.3 without problem.



FOR ECUs TRW VOLVO TRUCK and RENAULT TRUCK EURO5, EURO6
TRW EMS2.2
- Reading and writing Micro MPC5554
- Reading and writing EEPROM
- Recovery
- Checksum

TRW EMS 2.2 No need to open ECU cover for read and write.

KT200 TRW EMS2.2 MPC5554 Renault Volvo diesel pinout

TRW EMS2.2 MPC5554 Renault Volvo diesel pinout

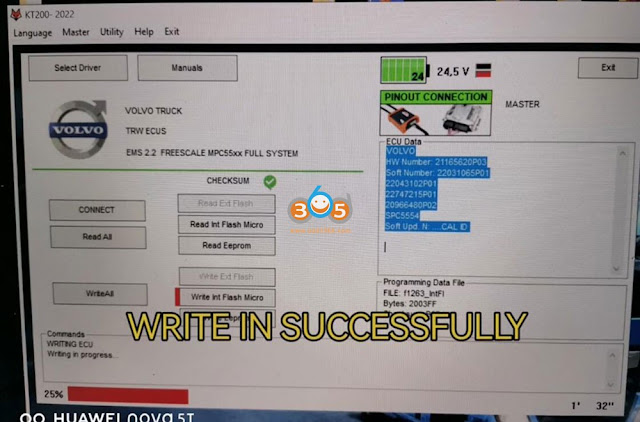

VOLVO RENAULT UD TRW EMS 2.2 WRITE IN SUCCESSFULLY

kt200 read volvo trw ems 2.2 ecu 1

kt200 read volvo trw ems 2.2 ecu 2

kt200 read volvo trw ems 2.2 ecu 3

kt200 read volvo trw ems 2.2 ecu 4

kt200 read volvo trw ems 2.2 ecu 5

TRW EMS2.3
- Reading and writing Micro MPC5674F
- Reading and writing EEPROM INT.
- Reading and writing EEPROM 25LC1024
- Recovery



TRW EMS 2.3 it can be done too, however, kt200 can not calculate checksum. Must be done with winols. But it works 100% R/W on bench.

KT200 Full TRW EMS 2.3 MPC5674F Renault Volvo diesel pinout.

KT200 Full TRW EMS 2.3 MPC5674F Renault Volvo diesel pinout.
