Top Tools to Read VAG MQB 5D Cluster Data

 What tool to read VAG MQB 5D cluster data? For example, need to correct mileage on a Volkswagen golf 8 number plate 5h0920340a cluster (mcu processor R7F701401).

VAG MQB 5D Cluster Data 1

VAG MQB 5D Cluster Data 2

VAG MQB 5D Cluster Data 3

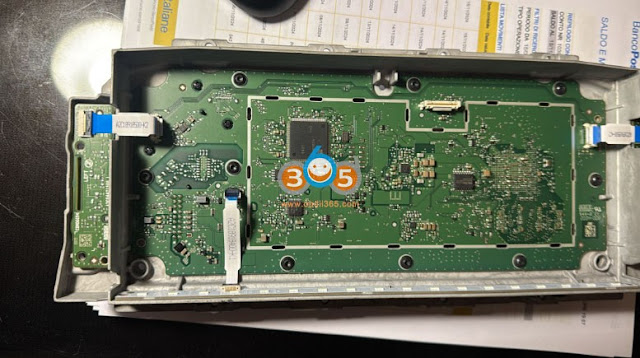

VAG MQB 5D Cluster Data 4

1.Yanhua Mini ACDP will release new interface boards for MQB 5D Clusters.

The interface boards will be available in December 2024.

It fits 5D clusters with processors such as R7F701401/21 and R7F701404, among others. Supports both mileage and key programming functions. Don’t need to remove resistors. No soldering.

Don’t need to buy new license. The boards share the license of module 34 for MQB RH850/V850.

VAG MQB 5D Cluster Data yanhua mini acdp

2. CG100X

CG100X new software version V1.6.4.0 is coming.

New software version adds mileage correction function for MQB 5D clusters. For mileage purposes only. It cannot decode immo data.

To read 5D cluster, you also need a D1 adapter.

VAG MQB R7F7014xx-Removing capacitor method R7F701404 (supports 5D instrument)
VAG MQB R7F7014xx-Removing capacitor method R7F701401 (supports 5D instrument)



Keep updating information and the wiring diagram.
